SELECT A DIAGRAM

02 - Bulkhead, Literature

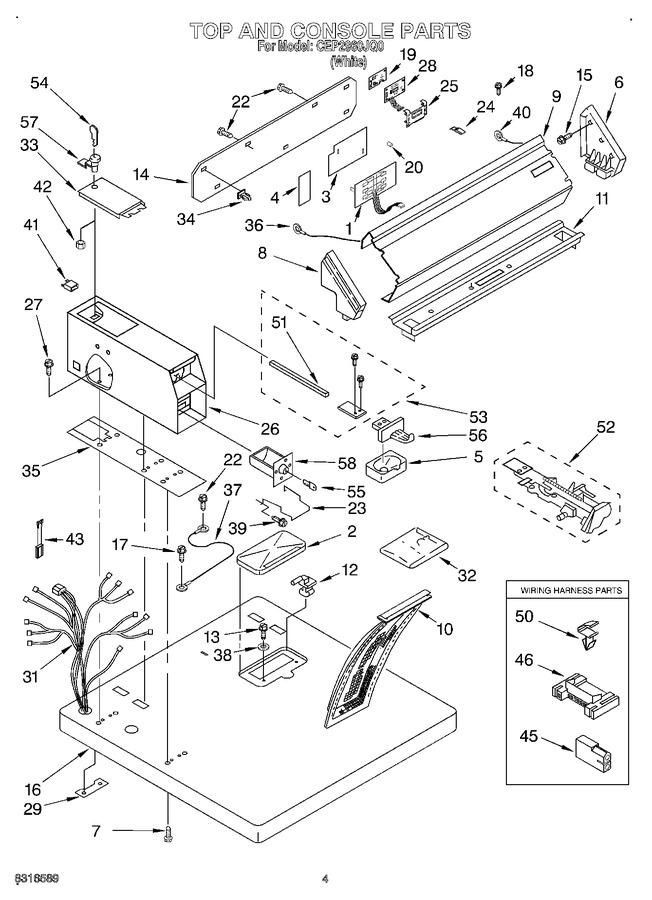

03 - Top And Console


04 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3950772		Switch, Membrane				$ 115.59
2	688150		Cover, Lint Screen		Appelez-nous	-
3	3950773		Backer Plate		Appelez-nous	-
4	3950775		Backer Plate, Side (2)		Appelez-nous	-
5	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 77.91
6	3949737		Cap, End (r.h.)				$ 49.53
7	W10841059		Screw, Thread Cutting   (Replaces: 98445)		Appelez-nous	-
8	3402631		End Cap (l.h.)		Appelez-nous	-
9	3402796		Panel, Control		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	3949733		Bracket, Control		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3387978		Panel, Rear		Appelez-nous	-
15	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
16	3402832		Top		Appelez-nous	-
17	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
18	WPW10366705		Screw, 8-32 X 7/8 (control Board)   (Replaces: 3393909)				$ 7.88
19	3407149		Control Board		Appelez-nous	-
20	3951768		Cap, Stud		Appelez-nous	-
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
23	355636		Guide, Drawer		Appelez-nous	-
24	3363338		Clip (2)		Appelez-nous	-
25	3949599		Lens, Display		Appelez-nous	-
26	3978748		Case, Meter		Appelez-nous	-
27	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 7.48
28	3407150		Board, Display		Appelez-nous	-
29	3347825		Plate & Nut Assembly		Appelez-nous	-
31	3402815		Harness, Wiring		Appelez-nous	-
32	279950		Meter Case Conversion Kit   (Replaces: 8316238)			Immediately	$ 28.89
33	W11283272		Door, Service   (Replaces: 3351136)				$ 111.17
34	689559		Nut, Push-in		Appelez-nous	-
35	WP3954812		Cushion, Console   (Replaces: 3348850)				$ 32.66
36	690853		Wire, Ground		Appelez-nous	-
37	340025		Wire, Ground		Appelez-nous	-
38	237446		Washer		Appelez-nous	-
39	339805		Screw, 10-32 X 3/16				$ 14.06
40	3397996		Wire, Ground		Appelez-nous	-
41	3402784		Switch, Service Diagnostic				$ 8.09
42	WP90406		Nut, Cage   (Replaces: 90406)				$ 9.09
43	3406197		A.c. Line Filter		Appelez-nous	-
45	717252		Connector, 2-way		Appelez-nous	-
46	3395683		Connector, Housing			Immediately	$ 54.45
50	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18

    View Diagram in Separate Window       Print Part List
