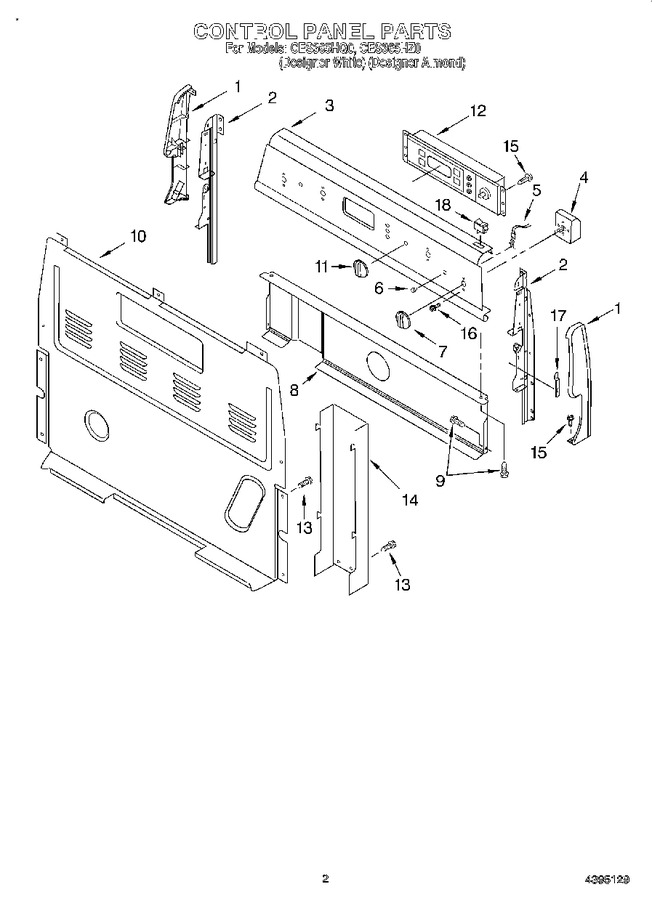

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Chassis


04 - Drawer & Broiler


05 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196193		Endcap (almond Right Hand)		Appelez-nous	-
1	3186190		Endcap (white Left Hand)		Appelez-nous	-
1	3186191		Endcap (white Right Hand)		Appelez-nous	-
1	3186192		Endcap (almond Left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
3	8272353		Panel, Backguard (almond)		Appelez-nous	-
3	8272354		Panel, Backguard (white)		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
5	313102		Light, Indicator (surface Unit (2))				$ 66.48
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 6.26
7	3196233		Knob, Infinite (4) (almond)				$ 15.63
7	3196232		Knob, Infinite (4) (white)				$ 16.71
8	8053912		Shield, Heat				$ 34.55
9	W10276642		Screw   (Replaces: 4449746)				$ 6.41
10	WP8272473		Cover, Upper   (Replaces: 3195163)				$ 219.04
11	8053353		Knob, 150 Control (almond)		Appelez-nous	-
11	8053352		Knob, 150 Control (white)		Appelez-nous	-
12	3196969		Control, Range (almond)		Appelez-nous	-
12	3196968		Control-range (white)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 139.60
15	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	3196200		Clip, Spring (2)				$ 10.45
18	3169466		Switch, Rocker (almond)		Appelez-nous	-
18	3149360		Switch, Rocker (white)				$ 89.01

    View Diagram in Separate Window       Print Part List
