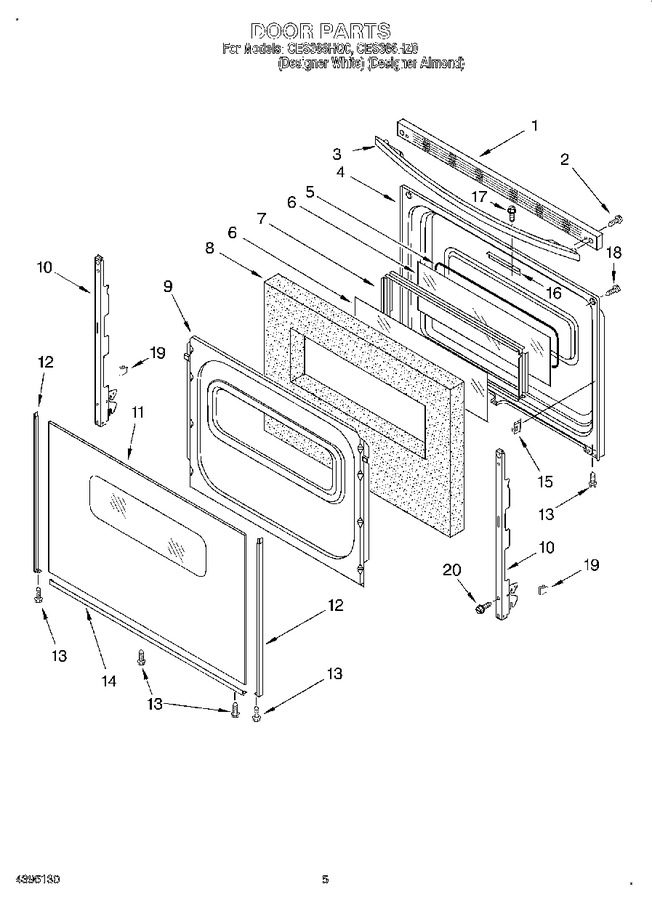

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196821		Trim, Door Top (white)		Appelez-nous	-
1	3196820		Trim, Door Top (almond)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202216		Handle, Door (white)   (Replaces: 3195218)				$ 370.67
3	3195921		Handle, Door (almond)		Appelez-nous	-
4	3186296		Liner, Door		Appelez-nous	-
5	3195985		Seal, Window		Appelez-nous	-
6	WP9758164		Glass, Inner (2)   (Replaces: 3186282)				$ 159.93
7	3186290		Frame, Glass		Appelez-nous	-
8	3186256		Insulation, Door		Appelez-nous	-
9	9761499		Retainer, Insul.   (Replaces: 3186299)				$ 325.33
10	WP8053807		Hinge, Door (2)   (Replaces: 8053807)				$ 101.17
11	WP9762476		Glass, Outer Door (white)   (Replaces: 8053481)				$ 332.66
11	8053483		Glass, Outer Door (almond)		Appelez-nous	-
12	8184859		Trim, Side (white Right Hand)   (Replaces: 3195971)				$ 170.91
12	8184859		Trim, Side (white Left Hand)   (Replaces: 3195974)				$ 170.91
12	8184860		Trim, Side (almond Right Hand)   (Replaces: 3195972)				$ 151.56
12	8184860		Trim, Side (almond Left Hand)   (Replaces: 3195975)				$ 151.56
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	8184859		Trim, Lower (white)   (Replaces: 3195422)				$ 170.91
14	8184860		Trim, Lower (almond)   (Replaces: 3195423)				$ 151.56
15	3196025		Clip, Glass (4)				$ 20.10
16	3195914		Bracket, Latch		Appelez-nous	-
17	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
19	3196925		Clip, Door Stop				$ 9.06
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
