SELECT A DIAGRAM

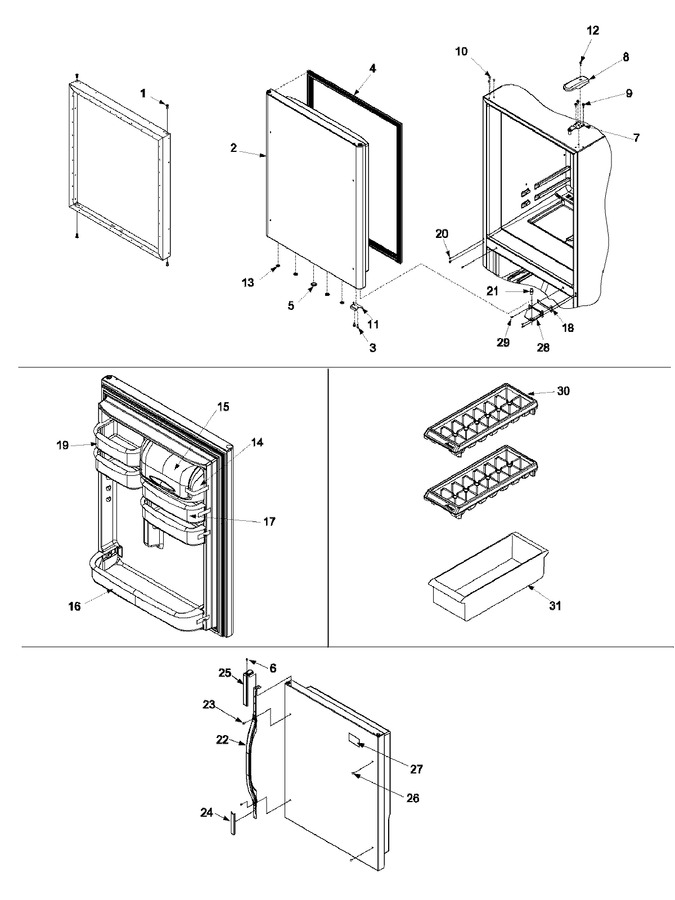

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10961002 | Bushing, Door (blk) |
|
- | |||||
| 2 | 12658501BQ | Ref Dr Foam Assy (blk) (Replaces: 67001136) |
|
$ 670.14 | |||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.76 | ||||
| 4 | WPW10436245 | Gasket, Ref Dr (blk) (Replaces: 12683801B) |
|
$ 345.10 | |||||
| 5 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 6 | 12248201 | Screw, Hndl Cone |
|
$ 5.48 | |||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) |
|
Immediately | $ 44.89 | ||||
| 8 | 67001012 | Cover, Top Hinge (blk) |
|
$ 47.34 | |||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 9.38 | |||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 10447109) |
|
Immediately | $ 14.05 | ||||
| 12 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.19 | ||||
| 13 | 67004838 | Plug, Button (blk) (Replaces: 67001016) |
|
$ 10.68 | |||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 83.82 | ||||
| 15 | WP67003637 | Door, Dairy (Replaces: 67001307) |
|
Immediately | $ 78.73 | ||||
| 16 | 67001139 | Retainer, Door (Replaces: 67001296) |
|
Immediately | $ 99.80 | ||||
| 17 | WPW10371193 | Bucket, Med Ref Dr (Replaces: 67001998) |
|
Immediately | $ 74.80 | ||||
| 18 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 19 | 67002287 | Bucket, Small Ref |
|
- | |||||
| 20 | WP489349 | Screw, Tf (Replaces: M0239730) |
|
Immediately | $ 7.88 | ||||
| 21 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.27 | |||||
| 22 | 67002334 | Handle, Ref Door (blk) |
|
- | |||||
| 23 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 9.38 | |||||
| 24 | 67001142 | Trim, Bottom Handle (blk) |
|
- | |||||
| 25 | 67001127 | Trim, Top Handle (blk) |
|
- | |||||
| 26 | WP12246608 | Plug, Handle Hole (blk) (Replaces: 12246603) |
|
Immediately | $ 7.76 | ||||
| 27 | Y12528501 | Nameplate (amana Plus) |
|
Immediately | $ 59.75 | ||||
| 28 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) |
|
$ 152.73 | |||||
| 29 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.02 | |||||
| 30 | WP841180A | Tray, Ice (Replaces: 59281-2) |
|
Immediately | $ 45.56 | ||||
| 31 | 10423131 | Bin, Utility |
|
$ 31.13 |
