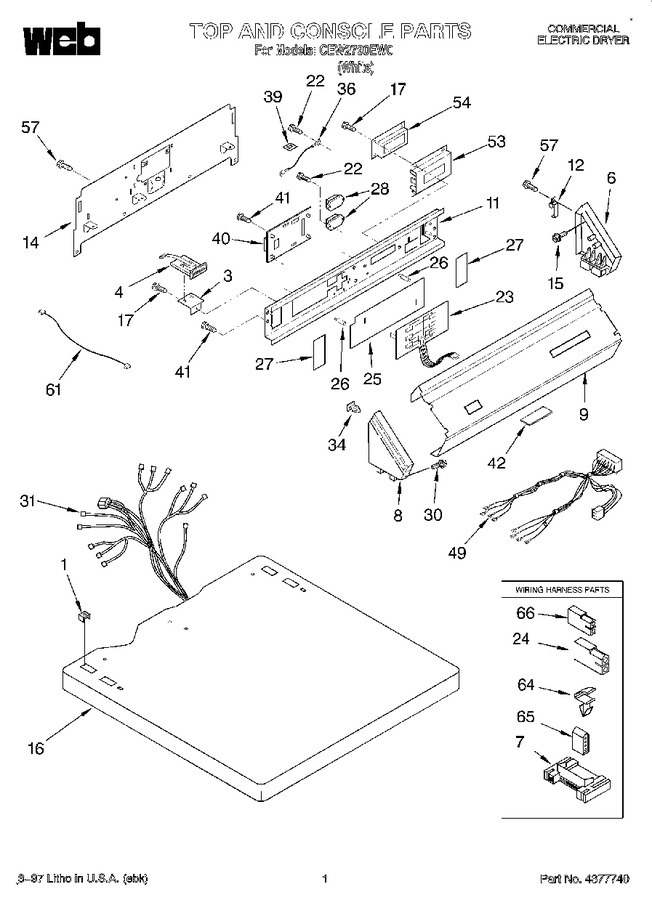

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.39
3	3949607		Bracket, Card Reader		Appelez-nous	-
4	3949598		Card Reader		Appelez-nous	-
6	3949737		Cap, End (r.h.)				$ 49.53
7	3395683		Housing, Connector (motor)			Immediately	$ 51.86
8	3949734		Cap, End (l.h.)		Appelez-nous	-
9	3402736		Panel, Control		Appelez-nous	-
11	3949731		Bracket, Control		Appelez-nous	-
12	387402		Hinge, Assembly				$ 5.84
14	3402826		Panel, Rear		Appelez-nous	-
15	WPW10109200		Screw, 13-16 X 5/8   (Replaces: 97787)			Immediately	$ 8.00
16	697209		Top		Appelez-nous	-
17	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.82
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
23	3950772		Switch, Membrane				$ 115.59
24	717253		Receptacle (2-way)		Appelez-nous	-
25	3950773		Backer Plate		Appelez-nous	-
26	3950774		Mounting Stud		Appelez-nous	-
27	3950775		Backer Plate (side)		Appelez-nous	-
28	WP8566493		Relay, Power (115 Volt Ac)   (Replaces: 697812)				$ 90.35
30	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
31	3402746		Harness, Wiring		Appelez-nous	-
34	689559		Nut, Push-in		Appelez-nous	-
36	690853		Wire, Ground		Appelez-nous	-
39	W10113937		Clip, Ground   (Replaces: 357572)				$ 10.83
40	3402740		Board, Control		Appelez-nous	-
41	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.50
42	686770		Protector Support		Appelez-nous	-
49	3402742		Harness, Console		Appelez-nous	-
53	3950779		Bezel, Display		Appelez-nous	-
54	3950778		Display, Eletronic (includes Item 61)		Appelez-nous	-
57	WP488729		Screw, Hex Head Washer   (Replaces: 3390647)			Immediately	$ 7.79
61	3406407		Vfd Cable		Appelez-nous	-
64	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
65	342529		Plug (4-way)		Appelez-nous	-
66	717252		Receptacle, 2 Way		Appelez-nous	-
