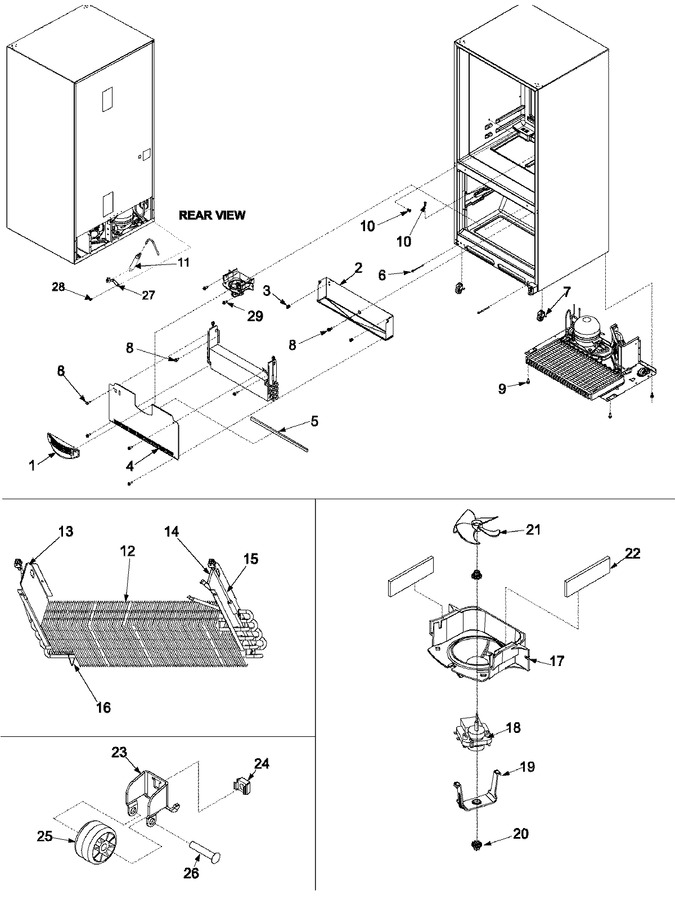

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10175909		Grille, Fz Airxx   (Replaces: 67001079)			Immediately	$ 85.72
2	W11337775		Tray, Drip E-ct   (Replaces: 67001133)			Immediately	$ 94.35
3	10623002		Clip, Evaporator				$ 11.53
4	67001134		Cover, Evaporator		Appelez-nous	-
5	A3189394		Gasket   (Replaces: 67002286)				$ 27.37
6	71003131		Bolt, Roller Adj   (Replaces: 12606102)			Immediately	$ 6.74
7	67001082		Front Roller Bracket Assy		Appelez-nous	-
8	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
9	M0260242		Screw, Tf		Appelez-nous	-
10	M0580205		Grommet, Screw		Appelez-nous	-
11	WPB2150504		Drier   (Replaces: B2150504)				$ 130.46
12	12002051		Kit, Evaporator				$ 323.54
13	67001083		Dam, Left Return		Appelez-nous	-
14	67001084		Dam, Right Return		Appelez-nous	-
15	WP67002135		Heater, Defrost   (Replaces: 67002135)			Immediately	$ 152.53
16	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 141.12
17	67001086		Shroud, Evap Fan		Appelez-nous	-
18	WPW10128551		Motor, Evap Fan   (Replaces: 67002056)			Immediately	$ 78.75
19	12217805		Clip, Evap Motor		Appelez-nous	-
20	WP67002780		Grommet, Fan Motor   (Replaces: 12619301)				$ 7.81
21	WP2169142		Fan, Evaporator   (Replaces: 12217201)			Immediately	$ 43.41
22	W10856123		Gasket, Foam   (Replaces: 67001291)			Immediately	$ 7.68
23	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
24	M0286708		Nut, Speed				$ 45.57
25	WP10450603		Roller   (Replaces: 10450602)				$ 7.88
26	M1205302		Rivet				$ 5.85
27	10547002		Clip, Drier		Appelez-nous	-
28	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
29	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
NI	67002008		Harness, Evap Heater		Appelez-nous	-
NI	12001937		Thermostat Kit			Immediately	$ 111.60
