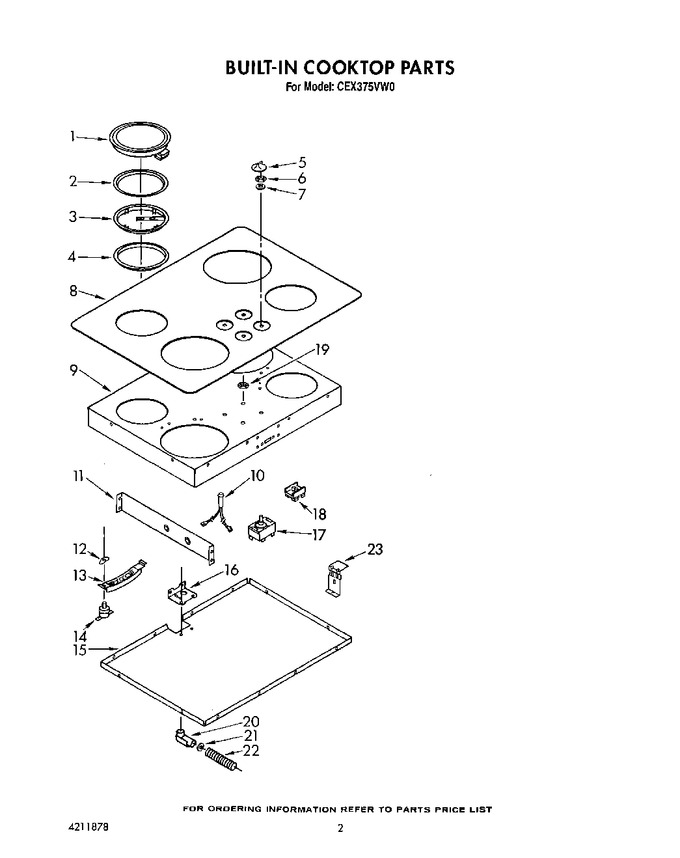

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211821		Surface Unit (nut (4))		Appelez-nous	-
1	WP3147131		Surface Unit (6`` (1500w) (2))   (Replaces: 4211837)				$ 285.56
1	WP3147132		Surface Unit (8`` (2000w) (2))   (Replaces: 4211840)				$ 318.14
2	4211838		Ring, Trim (black - 8`` (2))		Appelez-nous	-
2	4211854		Ring, Trim (white - 8`` (2))		Appelez-nous	-
2	4211835		Ring, Trim (black-6``(2))		Appelez-nous	-
2	4211855		Ring, Trim (white-6``(2))		Appelez-nous	-
3	4211839		Collar, Intermediate (8`` (2))		Appelez-nous	-
3	4211836		Collar, Intermediate (6``(2))		Appelez-nous	-
4	4211828		Gasket (6``(2))		Appelez-nous	-
4	4211834		Gasket (8`` (2))		Appelez-nous	-
5	4211876		Knob, Control (black)		Appelez-nous	-
5	4211872		Knob, Control (white)		Appelez-nous	-
6	4211830		Nut (4)		Appelez-nous	-
7	4211860		Seal, Shaft (4)		Appelez-nous	-
8	4211871		Cooktop, Glass (white)		Appelez-nous	-
8	4211873		Cooktop, Glass (black)		Appelez-nous	-
9	W10080180		Nut, 10-24   (Replaces: 4211810)				$ 14.15
9	4211827		Burner Box		Appelez-nous	-
9	4211812		Screw, 10-24 X 1/2		Appelez-nous	-
9	4211875		Lockwasher		Appelez-nous	-
10	4211833		Indicator Light (4)		Appelez-nous	-
11	4211808		Shield, Infinite Switch (2)		Appelez-nous	-
11	4211804		Screw, 10-32 (8)		Appelez-nous	-
12	4211822		Spring, Leaf (4)		Appelez-nous	-
13	4211820		Bracket, Mounting (6``(2))		Appelez-nous	-
13	4211825		Bracket, Mounting (8`` (2))		Appelez-nous	-
13	4211806		Bracket, Mounting (nut (4))		Appelez-nous	-
14	4211857		Protector, Thermal Switch (4)		Appelez-nous	-
15	4211804		Screw, 10-3/8 (14)		Appelez-nous	-
15	4211823		Cover, Burner Box		Appelez-nous	-
16	4211813		Screw, 10-3/8 (2)		Appelez-nous	-
16	4211814		Bracket, Cable		Appelez-nous	-
17	4211874		Infinite Switch (4)		Appelez-nous	-
18	4211832		Terminal Block		Appelez-nous	-
18	4211831		Screw, 10-3/4 (2)		Appelez-nous	-
19	4211819		Nut		Appelez-nous	-
20	4211815		90~ Connector		Appelez-nous	-
21	4211816		Bushing		Appelez-nous	-
22	4211817		Flex Cable		Appelez-nous	-
23	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
23	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
23	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
23	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
23	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
23	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
23	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
23	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
23	242831		Wire (14 Ga. 200 C Red)				$ 342.23
23	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
23	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
23	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
23	BKF15B		Cleaner (11 Oz.)   (Replaces: 261961)			Immediately	$ 4.58
23	261962		Conditioner (16 Oz.)		Appelez-nous	-
23	4211856		Installation Hardware		Appelez-nous	-
23	4211858		Bracket, Burner Box		Appelez-nous	-
23	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	LIT4211878		List, Repair Parts		Appelez-nous	-
	LIT4211866		Guide, Use & Care		Appelez-nous	-
	LIT4211867		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
