Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001942 Shelf, Stationary Appelez-nous -
2 67002089 Shelf-gld Out Appelez-nous -
3 67002162 Extension Ref Shelf Appelez-nous -
4 WP12227302WD Brace, Crisper E-ct   (Replaces: 67001155) Special Order $ 111.60

5 WP67006877 Glass, Crisper   (Replaces: 67001156) In-Stock Immediately $ 209.75

6 67002272 Extrusion, Crisper Front Appelez-nous -
7 WP67005864 Slide, Humidity Control   (Replaces: Y67001287) In-Stock Immediately $ 8.20

8 67001158 Seal, Front Crisper Special Order $ 6.93

9 67002274 Seal, Rear Crisper Special Order $ 8.61

10 67002437 Frame, Crisper Pan Special Order $ 23.86

11 WPW10671238 Rail, Center Crisper   (Replaces: 67001057) In-Stock Immediately $ 118.46

12 W10833528 Pan, Crisper   (Replaces: 67001309) In-Stock Immediately $ 139.95

12 67002395 Crisper Frame Assy Appelez-nous -
13 WPW10671240 Frame, Crisper   (Replaces: 67001153) In-Stock Immediately $ 138.10

14 67002276 Pan, Pantry Appelez-nous -
15 WP12227302WD Brace, Crisper E-ct   (Replaces: 67001155) Special Order $ 111.60

16 WP67006877 Glass, Crisper   (Replaces: 67001156) In-Stock Immediately $ 209.75

17 67002279 Extrusion, Pantry Front Appelez-nous -
18 67002002 Slide,pantry In-Stock Immediately $ 16.04

19 67001177 Pad, Glide Appelez-nous -
20 67002003 Bar,pantry Special Order $ 47.06

21 WP12531601 Tunnel,pantry   (Replaces: 67002004) Special Order $ 11.04

22 67002005 Gasket, Pantry Appelez-nous -
23 WP67001721 Support, Lh Crisper   (Replaces: 67001721) In-Stock Immediately $ 8.70

24 WP67001722 Support, Rh Crisper   (Replaces: 67001722) In-Stock Immediately $ 8.93

25 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

26 WP67001716 Hook, Ladder   (Replaces: 67001716) In-Stock Immediately $ 11.14

27 WP67001719 Track, Deli Drawer   (Replaces: 67001719) In-Stock Immediately $ 8.99

28 67001923 Divider, Pantry Special Order $ 21.04

29 W11233072 Screw   (Replaces: M0214931) In-Stock Immediately $ 14.72


    View Diagram in Separate Window     Print Icon   Print Part List

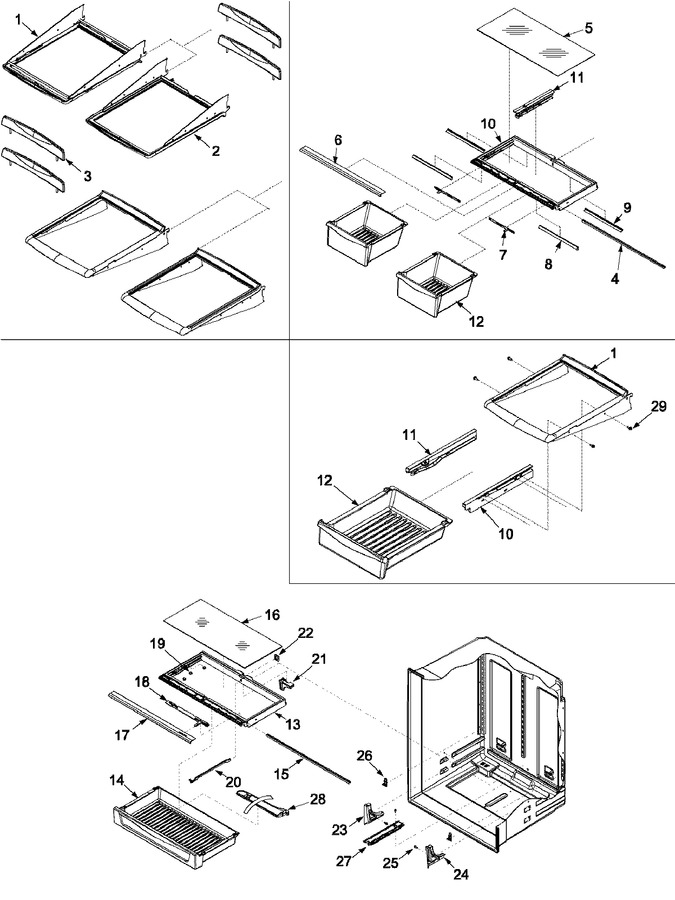

Diagram for ARB1917CC (BOM: PARB1917CC1)
