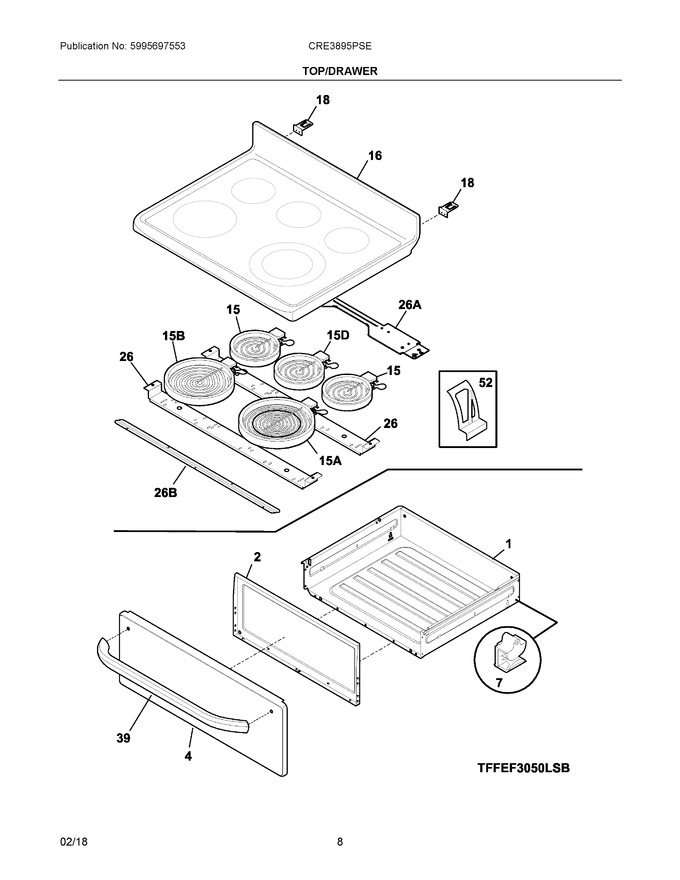

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 122.90
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 32.03
4	5304511920		Panel, Drawer, Stainless, Outer				$ 120.28
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 10.95
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	5304490293		Maintop, Glass, Black		Appelez-nous	-
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
26	5304500986		Channel, Element Support, (2)				$ 46.31
39	316246105		Handle, Door/drawer, Stainless				$ 161.46
52	316461700		Clip, Element Mtg				$ 13.39
15A	316282100		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 276.97
15B	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 100.15
15D	5304521951		Element, Surface, Warmer   (Replaces: 5304509306)			Immediately	$ 71.62
26A	316498200		Bracket-support, Chassis, Aluminum				$ 58.14
26B	316214202		Bracket, Chassis Support, Front				$ 25.41
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5308014215		Screw, 6-20 X 0.312				$ 2.53
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	5304511542		Harness, Surface Element				$ 88.99
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
