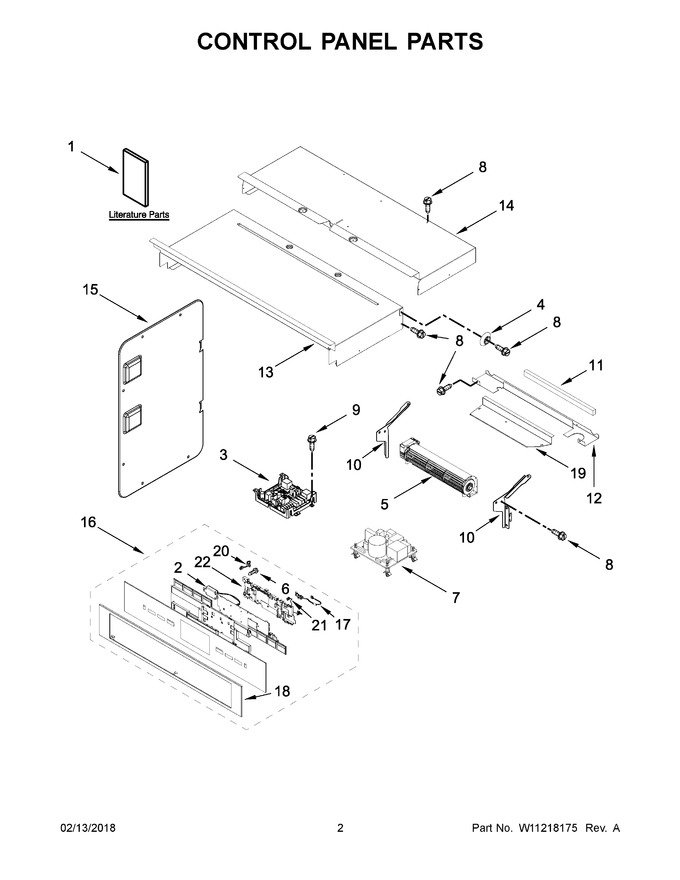

02 - Control Panel Parts

Diagram for 03 - Oven Parts
03 - Oven Parts

Diagram for 04 - Oven Door Parts
04 - Oven Door Parts

Diagram for 05 - Internal Oven Parts
05 - Internal Oven Parts

Diagram for 06 - Cabinet And Stirrer Parts
06 - Cabinet And Stirrer Parts

Diagram for 07 - Internal Microwave Parts
07 - Internal Microwave Parts

Diagram for 08 - Top Venting Parts
08 - Top Venting Parts

Diagram for 09 - Microwave Door Parts
09 - Microwave Door Parts

Diagram for 10 - Optional Parts (not Included)
10 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10754335 Guide, Use & Care (oven) Appelez-nous -
2 W11123146 Assembly, Speaker Special Order $ 80.93

3 W11179310 Control (with Power Supply)   (Replaces: W11040195) In-Stock Immediately $ 456.49

4 W10618105 Spacer, Lateral Appelez-nous -
5 W11713858 Blower   (Replaces: W10669823) In-Stock Immediately $ 348.59

6 W10489172 Screw Special Order $ 11.98

7 WPW10260060 Board, Power Supply   (Replaces: W10260060) In-Stock Immediately $ 317.35

8 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

9 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

10 W10655463 Bracket, Blower (left) Appelez-nous -
11 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 8.14

12 W10655465 Chassis, Back Divider Appelez-nous -
13 W11037652 Chassis, Cover Top Back 27" Wifi Appelez-nous -
14 W10318159 Chassis, Cover Top Front 27 Appelez-nous -
15 W10655467 Chassis, Combo Side Special Order $ 83.02

16 W11236895 Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10524511) Special Order $ 1,386.44

17 W10575307 Jumper Harness, Power Supply In-Stock Immediately $ 173.84

18 W10481158 Skin, Control Panel (stainless Models Only) Special Order $ 348.15

19 W10681157 Cover, Combo Blower Appelez-nous -
20 W10566973 Harness, Keypad (left To Center) Special Order $ 82.19

21 W10524350 Harness, Keypad (right To Center) Special Order $ 78.21

22 W10668510 Housing Special Order $ 105.17

10A W10655462 Bracket, Blower (right) Appelez-nous -
16A W11236900 Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10875280) Special Order $ 2,010.06

1A W10754339 Guide, Use & Care (microwave) Appelez-nous -
1B W10768184 Instructions, Installation Appelez-nous -
1C W10822057 Installation Instructions (english/french) Appelez-nous -
1D W11041090 Sheet, Tech (english/french) Appelez-nous -
NI 4448664 Clamp, Conduit Special Order $ 21.41

NI W11033088 Harness, Main Special Order $ 284.37

NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10874060 Harness, Inverter Special Order $ 148.71

NI W10523786 Harness, Signal In-Stock Immediately $ 189.33

NI W11356977 Harness, Cable Tree Assembly   (Replaces: W10889134) Special Order $ 85.07

NI W11171471 Harness, Communication   (Replaces: W10523917) Special Order $ 236.17

NI W11132989 Harness, Door Latch   (Replaces: W10775068) Special Order $ 118.98

NI W11226264 Strap, Ground   (Replaces: W10392129) Appelez-nous -
NI 4450800 Screw, Grounding Special Order $ 13.47

NI W11356954 Harness, Fan & Turntable   (Replaces: W10874059) Special Order $ 148.75
