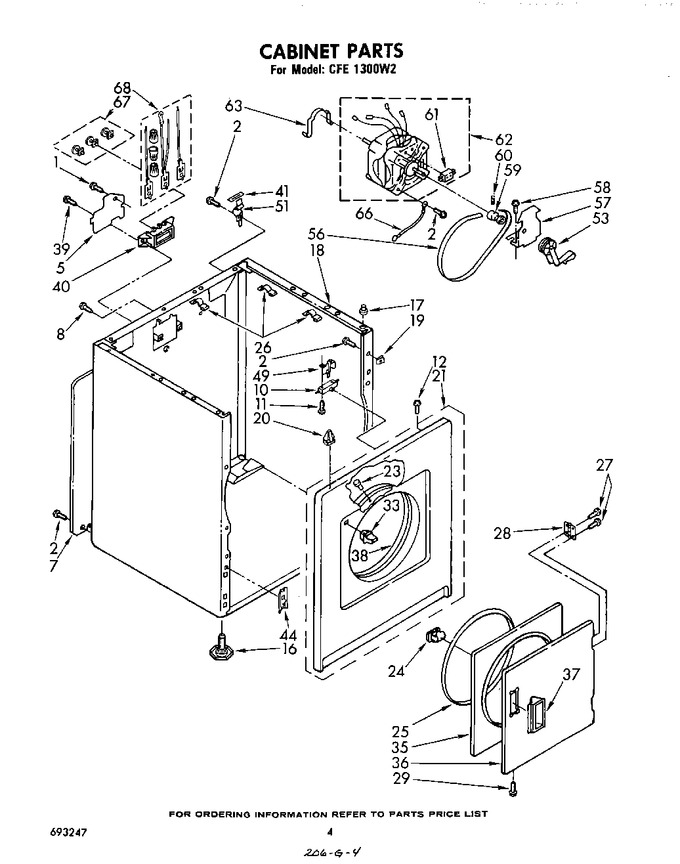

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 8.47 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 5 | W11736322 | Cover, Terminal Block (Replaces: 690893) |
|
- | |||||
| 7 | 346368 | Panel, Rear |
|
- | |||||
| 8 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 8.47 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw (2) (Replaces: 98129) |
|
$ 8.18 | |||||
| 12 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 16 | 49621 | Foot (4) (Replaces: 688222) |
|
Immediately | $ 8.55 | ||||
| 17 | 98669 | Locator, Top (2) |
|
$ 12.03 | |||||
| 18 | 690850 | Cabinet (new Avocado) |
|
- | |||||
| 18 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 18 | 690848 | Cabinet (almond) |
|
- | |||||
| 18 | 690847 | Cabinet (white) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 13.31 | ||||
| 21 | 693200 | Front Panel Assembly (also Includes Illus. 19) (new Avocado) |
|
- | |||||
| 21 | 693201 | Front Panel Assembly (also Includes Illus. 19) (golden Harvest) |
|
- | |||||
| 21 | 693197 | Front Panel Assembly (also Includes Illus. 19) (white) |
|
- | |||||
| 21 | 693198 | Front Panel Assembly (also Includes Illus. 19) (almond) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 56.31 | |||||
| 26 | WP98997 | Clip, Harness To Cabinet (6) (Replaces: 98997) |
|
$ 11.64 | |||||
| 27 | 689791 | Screw (6) |
|
- | |||||
| 28 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 9.32 | |||||
| 29 | WP694091 | Screw, Door (4) (Replaces: 694091) |
|
$ 7.55 | |||||
| 33 | 279570 | Strike, Panel (Replaces: 693717) |
|
Immediately | $ 8.89 | ||||
| 35 | 280077 | Door, Rear (white) (Replaces: 348201) |
|
$ 207.46 | |||||
| 35 | 280077 | Door, Rear (golden Harvest) (Replaces: 689277) |
|
$ 207.46 | |||||
| 35 | 280077 | Door, Rear (new Avocado) (Replaces: 689276) |
|
$ 207.46 | |||||
| 35 | 280077 | Door, Rear (almond) (Replaces: 689274) |
|
$ 207.46 | |||||
| 36 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 36 | 689318 | Door, Front (new Avocado) |
|
- | |||||
| 36 | 689314 | Door, Front (almond) |
|
- | |||||
| 36 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 154.76 | ||||
| 37 | 689306 | Handle, Door (almond) |
|
- | |||||
| 37 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 8.35 | ||||
| 37 | 689583 | Handle, Door (new Avocado) |
|
- | |||||
| 37 | 689584 | Handle, Door (golden Harvest) |
|
- | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 39 | WP308685 | Screw (Replaces: 9416643) |
|
Immediately | $ 7.87 | ||||
| 40 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 68.25 | ||||
| 41 | 18849 | Pad, Top Hinge (2) |
|
$ 21.15 | |||||
| 44 | W10854425 | Clip, Front Panel (2) (Replaces: 237823) |
|
Immediately | $ 16.34 | ||||
| 49 | WP691581 | Lever, Door Switch (Replaces: 295998) |
|
Immediately | $ 8.49 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 349533) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 14.04 | ||||
| 59 | W11233559 | Pulley, 60 Hz. (includes Illus. 60) (Replaces: 685011) |
|
$ 119.58 | |||||
| 60 | 690046 | Set Screw |
|
- | |||||
| 61 | 279827 | Use W/690870 Motor (Replaces: 337351) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor, 60 Hz. (Replaces: 690870) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clip, Motor (alt.) (Replaces: 343481) |
|
$ 8.22 | |||||
| 63 | WP660658 | Clip, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 63 | WP660658 | Clip, Motor (alt.) (Replaces: 685441) |
|
$ 8.22 | |||||
| 66 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 67 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 68 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 68 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 68 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 68 | 279318 | Terminal, Brass & Tinned (3) (includes Illus. 67) |
|
Immediately | $ 106.04 | ||||
| 68 | 348772 | Instructions, Multi-venting |
|
- | |||||
| 68 | 687451 | Instructions, Installation |
|
- | |||||
| 68 | 693247 | List, Service Parts |
|
- | |||||
| 68 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 68 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 68 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 68 | 261888 | New Avocado |
|
- | |||||
| 68 | 261890 | Golden Harvest |
|
- | |||||
| 68 | 350941 | Leveler (thinner) |
|
- | |||||
| 68 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 68 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 261891 | Xgolden Harvest (uncut) |
|
- | ||||||
| 261889 | Xnew Avocado (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
