SELECT A DIAGRAM

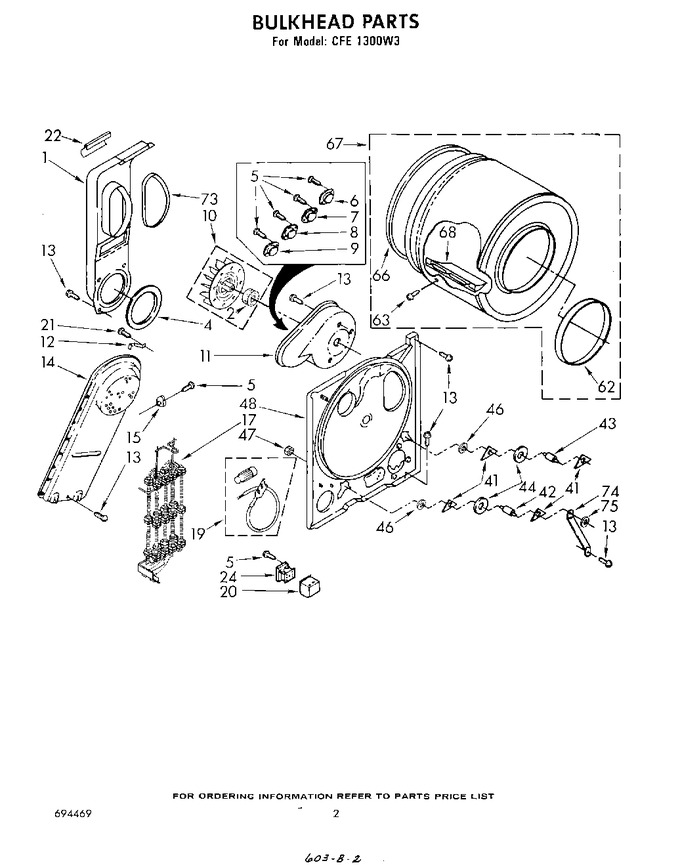

02 - Bulkhead
03 - Cabinet , Literature And Optional
04 - Top And Console
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 317.74 | |||||
| 2 | 694630 | Seal, Blower |
|
- | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | 660368 | Thermostat, 180~f (82~c) |
|
- | |||||
| 6 | LS2-175 | Thermostat, 180~f (82~c) (alt.) (Replaces: 341197) |
|
Immediately | $ 27.33 | ||||
| 7 | LS2-155 | Thermostat, 155~f (68~c) (alt.) (Replaces: 341199) |
|
Immediately | $ 27.33 | ||||
| 7 | AT022 | Thermostat, 155 (Replaces: 660073) |
|
Immediately | $ 35.17 | ||||
| 8 | LS3-140 | Thermostat, 140 (Replaces: 344395) |
|
$ 24.35 | |||||
| 9 | LS2-140 | Thermostat, 140~f (60~c) (alt.) (Replaces: 342812) |
|
Immediately | $ 27.33 | ||||
| 9 | WP694674 | Thermostat,140~f (60~c) (Replaces: 660040) |
|
Immediately | $ 50.51 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 695499) |
|
Immediately | $ 37.66 | ||||
| 11 | 348493 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 15.05 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 685457 | Box, Heater |
|
- | |||||
| 15 | 341195 | Thermostat, 250~f (121~c) |
|
- | |||||
| 17 | WP279462 | Element, Heater Assembly (Replaces: 693301) |
|
$ 304.87 | |||||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 20 | 691220 | Shield, Relay |
|
- | |||||
| 21 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 8.47 | ||||
| 22 | 686770 | Protector Support |
|
- | |||||
| 24 | 341040 | Relay, Power |
|
- | |||||
| 41 | WPW10512946 | Ring, Tri (4) (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.55 | |||||
| 47 | 120377 | Nut, 3/8-16 (2) |
|
- | |||||
| 48 | 387227 | Bulkhead |
|
- | |||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 297936) |
|
$ 131.86 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 (3) |
|
- | |||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 62.78 | ||||
| 67 | 3396775 | Drum Assembly (Replaces: 387226) |
|
$ 353.03 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 154.33 | |||||
| 73 | WP339956 | Seal, Chute To Bulkhead (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 74 | 348945 | Bracket, Support Shaft |
|
- | |||||
| 75 | WP90296 | Retainer (Replaces: 90296) |
|
$ 8.24 |
