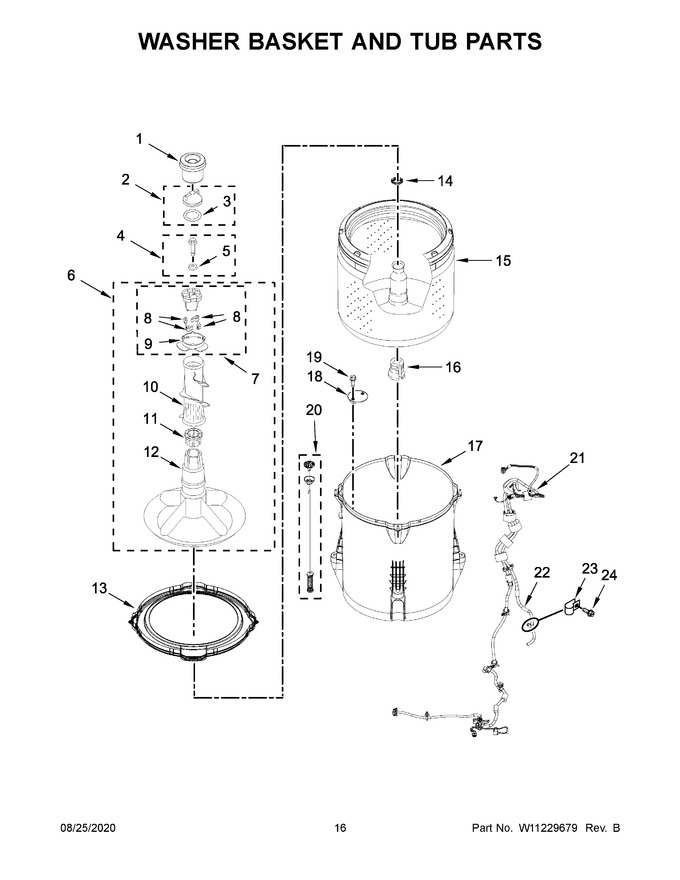

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8575076A | Dispenser, Fabric Softener (Replaces: 8575076) |
|
Immediately | $ 31.69 | ||||
| 2 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 13.02 | ||||
| 3 | WPW10072840 | Seal, Inner Cap (Replaces: W10072840) |
|
Immediately | $ 8.72 | ||||
| 4 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.30 | ||||
| 5 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 6 | 285565 | Agitator (complete) (Replaces: 3951744) |
|
Immediately | $ 331.98 | ||||
| 7 | 285809 | Cam, Driven (Replaces: 3951682) |
|
Immediately | $ 31.12 | ||||
| 8 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 9 | WP3952374 | Bearing, Cam (Replaces: 3952374) |
|
$ 8.24 | |||||
| 10 | WP3363003 | Mover, Clothes (Replaces: 3363003) |
|
Immediately | $ 257.52 | ||||
| 11 | WP3951608 | Spacer-thrust (Replaces: 3951608) |
|
Immediately | $ 7.64 | ||||
| 12 | WP3951632 | Agitator (Replaces: 3951632) |
|
Immediately | $ 155.29 | ||||
| 13 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 202.61 | ||||
| 14 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 15 | W10554251 | Basket Assembly |
|
Immediately | $ 432.21 | ||||
| 16 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 17 | W10371566 | Tub (Replaces: W10238320) |
|
$ 356.34 | |||||
| 18 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 65.26 | |||||
| 19 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 20 | W10780045 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821951) |
|
Immediately | $ 114.26 | ||||
| 21 | W11417071 | Harness, Lower (Replaces: W11028052) |
|
Immediately | $ 173.08 | ||||
| 22 | W11230132 | Hose, Pressure Switch (Replaces: W11166073) |
|
$ 33.69 | |||||
| 23 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 24 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 |
