SELECT A DIAGRAM

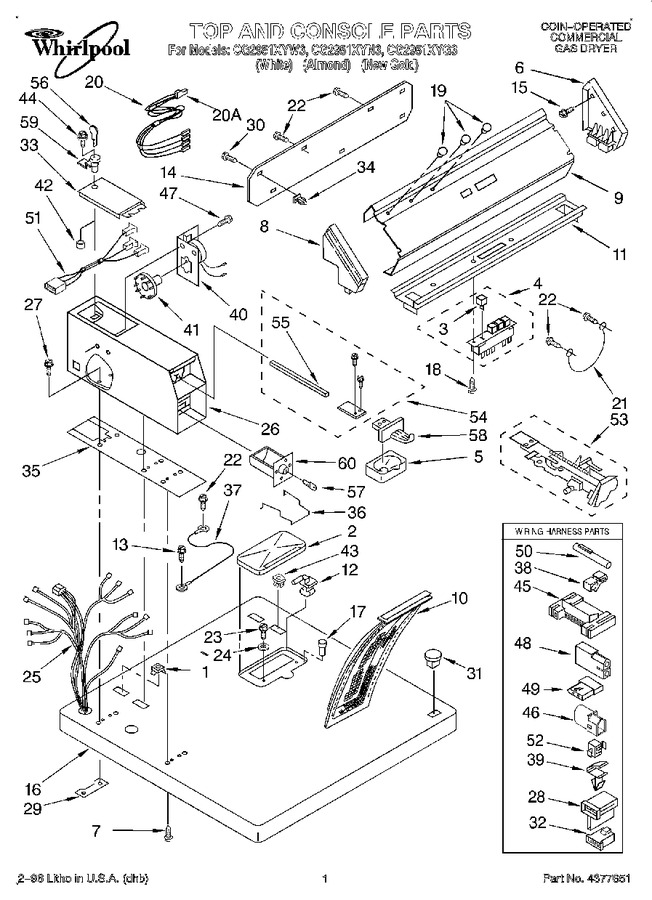

01 - Top And Console


02 - Cabinet


03 - Bulkhead, Lit/optional


04 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358472		Nut, Push-in (4)		Appelez-nous	-
2	691205		Cover, Lint Screen		Appelez-nous	-
3	3348587		Button (4)				$ 12.40
4	3401851		Switch, Pushbutton				$ 122.99
5	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 77.91
6	63795		Cap, End. (r.h.)				$ 14.10
7	W10841059		Screw, Thread Cutting (4)   (Replaces: 98445)		Appelez-nous	-
8	3347710		End Cap (l.h.)		Appelez-nous	-
9	3393405		Panel, Control		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	3398113		Bracket, Control		Appelez-nous	-
12	WPW10044470		Hinge, Lint Lid R.h.   (Replaces: 691193)				$ 8.11
12	WPW10044480		Hinge, Lint Lid L.h.   (Replaces: 691194)				$ 8.11
13	339805		Screw, 10-32 X 3/16				$ 14.06
14	3387978		Panel, Rear		Appelez-nous	-
15	WPW10109200		Screw, 13-16 X 5/8 (4)   (Replaces: 97787)			Immediately	$ 8.80
16	3402302		Top (new Gold)		Appelez-nous	-
16	3402301		Top (almond)		Appelez-nous	-
16	3402300		Top (white)		Appelez-nous	-
17	297535		Bumper, Lint Lid		Appelez-nous	-
18	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 11.87
19	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 13.14
20	351297		Plug		Appelez-nous	-
20	3401177		Lights, Indicator		Appelez-nous	-
21	690853		Wire, Ground		Appelez-nous	-
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
23	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
24	237446		Washer		Appelez-nous	-
25	3401738		Harness, Wiring		Appelez-nous	-
26	3395379		Case, Meter (almond)		Appelez-nous	-
26	3395378		Case, Meter (white)		Appelez-nous	-
26	3395380		Meter Case (new Gold)		Appelez-nous	-
27	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 7.48
28	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
29	3347825		Plate & Nut Assembly		Appelez-nous	-
30	WP388326		Screw   (Replaces: 64211)				$ 9.29
31	387371		Plug, Hole Lock				$ 11.36
32	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
33	3351138		Door, Service (new Gold)		Appelez-nous	-
33	W11283272		Door, Service (white)   (Replaces: 3351136)				$ 111.17
33	3351137		Door, Service (for Almond Model)		Appelez-nous	-
34	689559		Nut, Push-in		Appelez-nous	-
35	WP3954812		Cushion, Console   (Replaces: 3348850)				$ 32.66
36	3352295		Guide, Drawer		Appelez-nous	-
37	340025		Wire, Ground		Appelez-nous	-
38	689180		Clip		Appelez-nous	-
39	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
40	279737		Timer, 60 Hz. (incl. 4 Pin Cam)   (Replaces: 3387975)			Immediately	$ 312.10
41	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.74
41	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
42	WP90406		Nut, Cage   (Replaces: 90406)				$ 9.09
43	358473		Nut, Push-in				$ 5.84
44	358409		Screw & Washer		Appelez-nous	-
45	3395683		Connector, Housing			Immediately	$ 54.45
46	342529		Plug (4-way)		Appelez-nous	-
47	339805		Screw, 10-32 X 3/16				$ 14.06
48	717252		Receptacle, 2 Way		Appelez-nous	-
49	717253		Plug, 2-way		Appelez-nous	-
50	351296		Receptacle		Appelez-nous	-
51	3401126		Harness, Timer		Appelez-nous	-
52	342529		Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
