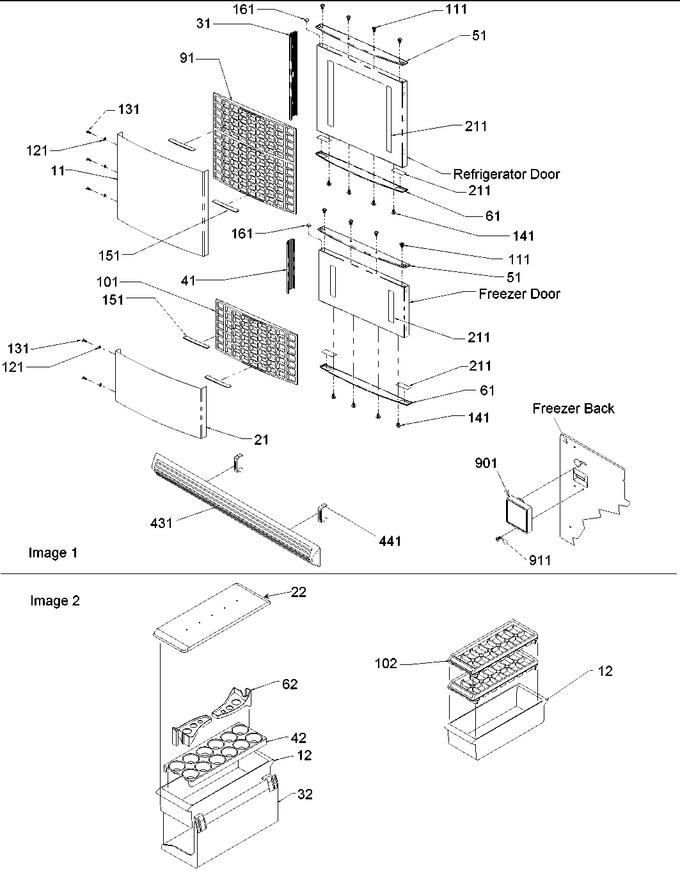

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12481125		Panel,cntour Ref Dr(white)		Appelez-nous	-
12	10423131		Bin, Utility				$ 31.13
21	12481129		Panel,contour Fz Dr(white)		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
31	12500703W		Handle, Ref Dr (wht)		Appelez-nous	-
32	10448903		Rack, Bottle		Appelez-nous	-
41	12500704W		Handle,fz Dr(white)		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
51	12503902W		Cap,top Door(white)		Appelez-nous	-
61	12503901W		Trim,bottom Dr(white)		Appelez-nous	-
62	12103905		Snugger, Door Shelf		Appelez-nous	-
91	12508001		Spacer,contour Ref Dr		Appelez-nous	-
101	12508002		Spacer,contour Fz Dr		Appelez-nous	-
102	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
111	M0229531		Screw, Sm (wht)		Appelez-nous	-
121	12315103		Clip, Extra Handle		Appelez-nous	-
131	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
141	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
151	12510102		Support, Door Skin		Appelez-nous	-
161	12098902		Plug, Trim (wht)		Appelez-nous	-
211	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
431	10474802		Grille, Toe (white)				$ 44.88
441	10551502		Clip, Toe Grille				$ 5.84
901	D7874403		Cover-fl Tb/plug		Appelez-nous	-
911	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
