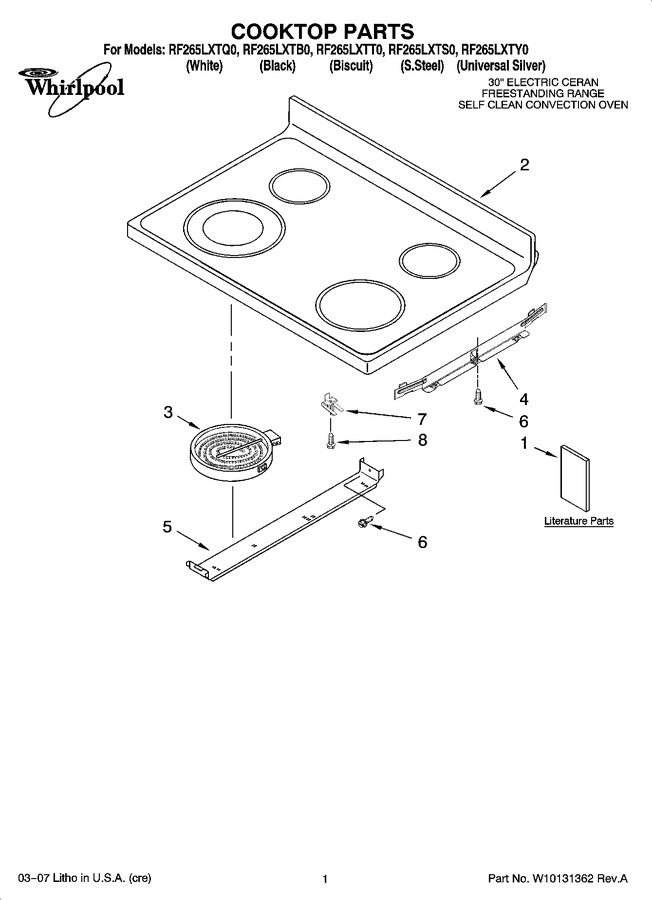

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9763001		Owner`s Manual		Appelez-nous	-
1	9762978		Tech Sheet		Appelez-nous	-
1	9762996		Installation Instructions		Appelez-nous	-
1	9757143		Template, Anti-tip (english/french)		Appelez-nous	-
1	9757142		Template, Anti-tip (english/spanish)		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking		Appelez-nous	-
2	9763327		Cooktop (white)		Appelez-nous	-
2	9763329		Cooktop (black)		Appelez-nous	-
2	9763328		Cooktop (biscuit)		Appelez-nous	-
3	WP8523047		Element, Surface (2400/1000 W - Lf)   (Replaces: 8523047)				$ 366.71
3	W11171119		Element, Surface (1200 W - Lr & Rr)   (Replaces: 8273994)			Immediately	$ 182.23
3	W11047722		Element, Surface (2500 W - Rf)   (Replaces: 8273992)			Immediately	$ 132.46
4	8524132		Shield, Wiring		Appelez-nous	-
5	8272791		Bracket, Element (2)		Appelez-nous	-
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W10035930		Spring, Locator		Appelez-nous	-
8	WP3196170		Screw   (Replaces: 3196170)				$ 7.55
