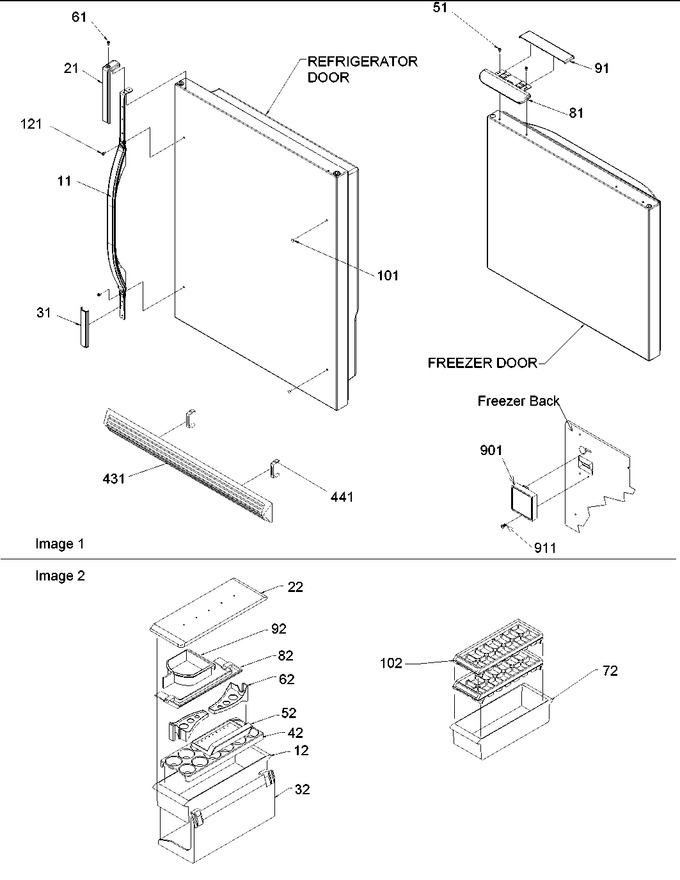

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12443505C		Handle,ref Dr(bisque)		Appelez-nous	-
12	10423127		Bin, Egg		Appelez-nous	-
21	12443304		Trim,upper Hndl(bisque)		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
31	12273516		Trim, Bot Mt(bisque)		Appelez-nous	-
32	10448902		Rack, Wine		Appelez-nous	-
42	10436504		Tray, Egg		Appelez-nous	-
51	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
52	10310901		Tray, Butter		Appelez-nous	-
61	12248201		Screw, Hndl Cone				$ 5.48
62	12103905		Snugger, Door Shelf		Appelez-nous	-
72	10423129		Bin-utility		Appelez-nous	-
81	WP67005141		Handle, Fz Dr (bsq)   (Replaces: 12285407)				$ 146.21
82	10468004		Retainer, Tall Pkg		Appelez-nous	-
91	12285504		Cap,fz Handle(bisque)		Appelez-nous	-
92	10441102		Hugger, Bottle (shelf Divider)		Appelez-nous	-
101	12246604		Plug, Handle Hole (bsq)		Appelez-nous	-
102	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 45.56
121	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.38
431	10474806		Grille, Toe (bisque)				$ 45.30
441	10551502		Clip, Toe Grille				$ 5.84
901	D7874403		Cover-fl Tb/plug		Appelez-nous	-
911	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
