SELECT A DIAGRAM

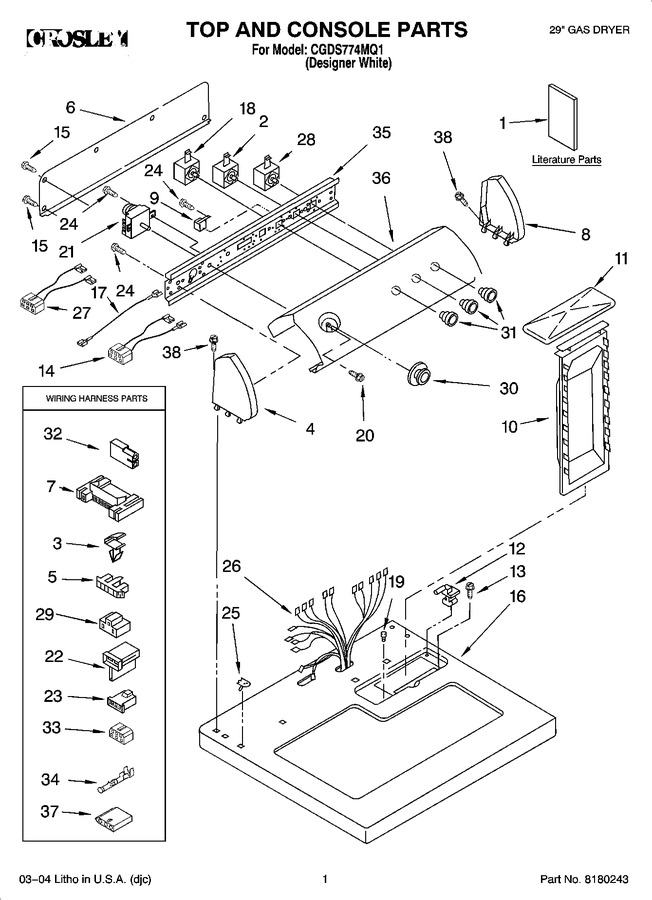

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8535912		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT3979703		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8535915		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8535909		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
2	WP3405156		Switch, Finish Guard   (Replaces: 3405156)				$ 145.51
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 83.40
5	3397269		Connector, Timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	3395683		Housing, Connector (motor)			Immediately	$ 51.86
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 83.40
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3397695		Wire, Jumper (guard On/off)				$ 86.40
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
16	8271390		Top		Appelez-nous	-
17	3401684		Wire, Jumper (black)				$ 34.57
18	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
19	297535		Bumper, Lint Lid		Appelez-nous	-
20	3400859		Screw, Grounding				$ 13.22
21	WP8299766		Timer Assembly (60 Hz.)   (Replaces: 8299766)				$ 370.70
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
24	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
25	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
26	8299879		Harness, Wiring		Appelez-nous	-
27	8539893		Wire-jumper Assembly (temperature)   (Replaces: 3396029)				$ 18.84
28	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
29	3401144		Connector, (pts Relay)				$ 12.20
30	WP3957746		Timer Knob Assembly   (Replaces: 8283182)				$ 54.75
31	WP3957796		Knob, Control (3)   (Replaces: 3950759)			Immediately	$ 54.83
32	717252		Receptacle, 2 Way		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
35	8271418		Bracket, Control				$ 57.15
36	3977938		Panel, Control		Appelez-nous	-
37	3936144		Connector				$ 20.21
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
38	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
38	3406839		Dry Rack			Immediately	$ 65.68
38	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
38	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
38	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
38	N/A		Accessory Parts		Appelez-nous	-
38	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85

    View Diagram in Separate Window       Print Part List
