SELECT A DIAGRAM

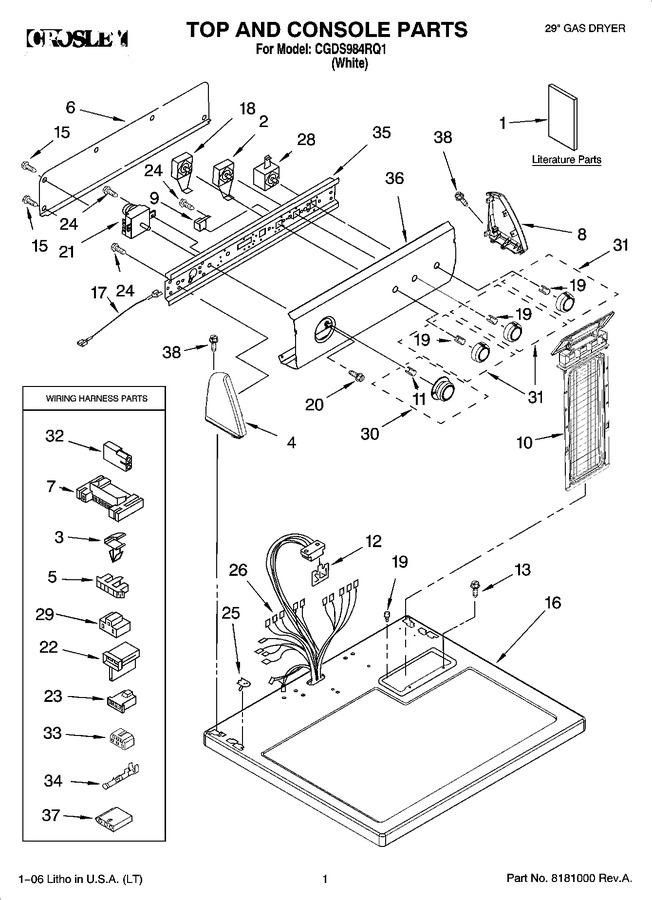

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8576803 | Wiring Diagram |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | 8562589 | Installation Instructions |
|
- | |||||
| 1 | 8577364 | Sheet, Cycle Feature |
|
- | |||||
| 1 | 8578544 | Use & Care Guide |
|
- | |||||
| 2 | 3405154 | Switch, Finish Guard |
|
$ 160.52 | |||||
| 3 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 10 | W11778253 | Handle & Lint Screen Assembly (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 11 | WP688805 | Spring Clip, Knob (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 12 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 329.93 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 18 | 8530169 | Switch, Temperature |
|
$ 147.06 | |||||
| 19 | WP8536939 | Spring Clip Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 20 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 21 | WP3406725 | Timer Assembly 60 Hz. (Replaces: 3406725) |
|
$ 387.01 | |||||
| 22 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 23 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 24 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 25 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 26 | 8299890 | Harness, Wiring |
|
- | |||||
| 28 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 92.88 | ||||
| 29 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 30 | WP8557455 | Timer Knob Assembly (Replaces: 8538953) |
|
$ 59.61 | |||||
| 31 | WP8538957 | Knob, Control (3) (Replaces: 8538957) |
|
$ 58.53 | |||||
| 32 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 34 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 35 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 36 | 8577343 | Panel, Control |
|
- | |||||
| 37 | 3936144 | Connector |
|
$ 21.22 | |||||
| 38 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 |
