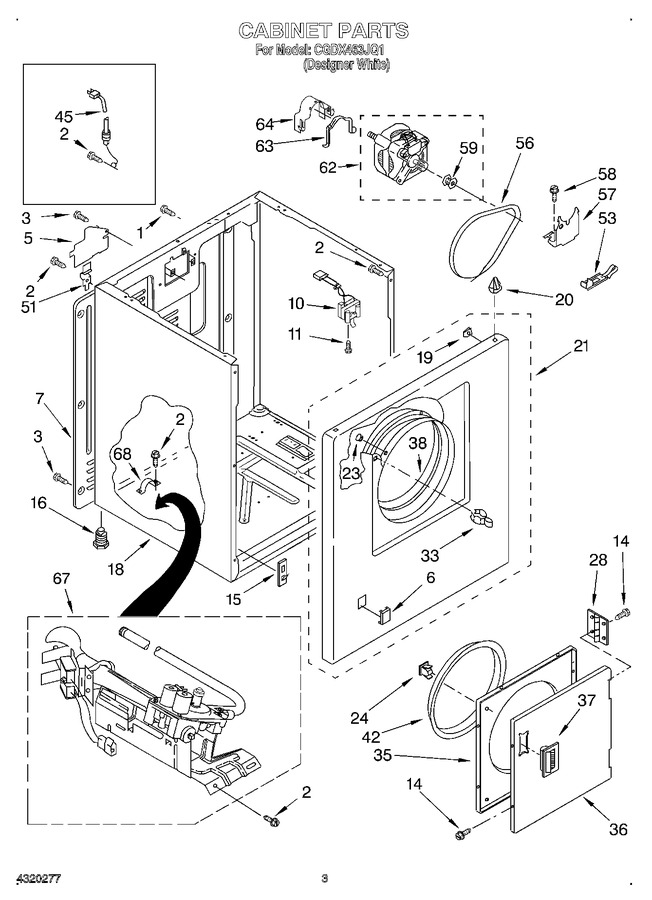

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 697776) |
|
$ 8.20 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | 3394975 | Plug, Front Panel |
|
$ 5.70 | |||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 10 | WP3406102 | Door Switch Assembly (Replaces: 3406102) |
|
$ 41.66 | |||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 14 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.55 | |||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 18 | 3399580 | Cabinet Assembly (includes Illus. Nos. 5, 7, 15, 16 & 57) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 21 | 3394895 | Front Panel Assembly |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 28 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 9.32 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 35 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 207.46 | |||||
| 36 | WP348205 | Door, Front (Replaces: 348205) |
|
Immediately | $ 154.76 | ||||
| 37 | WP686711 | Handle, Door (Replaces: 686711) |
|
Immediately | $ 8.35 | ||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 42 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 56.31 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 53 | WP691366 | Idler & Slide Assembly (Replaces: 3394332) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 62 | 279827 | Motor, 60 Hz. (Replaces: 3976707) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 64 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 67 | W10823508 | Burner Assembly, 60 Hz. (refer To Parts Page For Further Breakdown) (Replaces: 8318272) |
|
$ 541.24 | |||||
| 68 | 341029 | Clamp, Pipe |
|
- |
