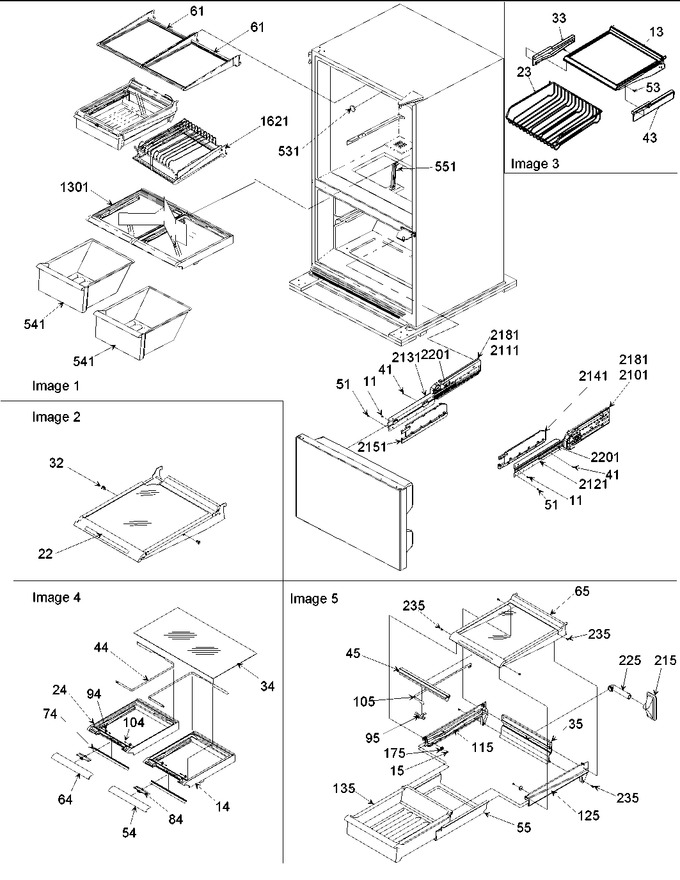

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 | |||||
| 13 | 10895818 | Shelf, Glide |
|
- | |||||
| 14 | 10485901 | Frame, Crisper (r) |
|
- | |||||
| 15 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 22 | 10895818 | Shelf, Glide |
|
- | |||||
| 23 | 12503801 | Rack, Can |
|
- | |||||
| 24 | 10485902 | Frame, Crisper (l) |
|
- | |||||
| 32 | 10875101 | Stop, Shelf |
|
- | |||||
| 33 | 12528201 | Glide,left Can Rack |
|
- | |||||
| 34 | 10370035 | Glass, Shelf |
|
$ 101.12 | |||||
| 35 | 10934903 | Extrusion Mk Rear |
|
- | |||||
| 41 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 43 | 12528202 | Glide,right Can Rack |
|
- | |||||
| 44 | 10514002 | Band, Crisper Control |
|
- | |||||
| 45 | 10920303 | Extrusion, Mk Frt |
|
- | |||||
| 51 | 67006425 | Screw (Replaces: M0239229) |
|
Immediately | $ 7.30 | ||||
| 53 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 54 | 10530332 | Trim,crispr Front |
|
- | |||||
| 55 | 10437306 | Sleeve,meatkeeper |
|
- | |||||
| 61 | 10926207Q | Assy, Shelf-hlf Gl |
|
- | |||||
| 64 | 10530333 | Trim,crispr Front |
|
- | |||||
| 65 | 10895714 | Shelf, Stationary |
|
- | |||||
| 74 | 10530204 | Seal, Crisper |
|
$ 39.10 | |||||
| 84 | 10797501 | Slide, Crisper |
|
- | |||||
| 94 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 95 | 10920401 | Slide, Mk Control |
|
- | |||||
| 104 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 105 | 10935002 | Band, Mk Control |
|
- | |||||
| 115 | 10880202 | Glide, Mk R |
|
$ 21.98 | |||||
| 125 | 10897102 | Glide, L. Mk |
|
$ 68.61 | |||||
| 135 | 10417018 | Pan,meatkeeper |
|
$ 62.65 | |||||
| 175 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 215 | 10501901 | Grommet, Mt. Kpr. |
|
- | |||||
| 225 | 10486401 | Tunnel, Air Mt Kp |
|
- | |||||
| 235 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 531 | M0310343 | Plug, Button (wht) |
|
$ 11.20 | |||||
| 541 | 10432015 | Pan,crisper |
|
$ 68.09 | |||||
| 551 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 1301 | 12431808Q | Assy, Crisper |
|
- | |||||
| 1621 | 12224201Q | Assy, Can Rack |
|
- | |||||
| 2101 | 12563801 | Adapter,r.h. Side |
|
- | |||||
| 2111 | 12563802 | Adapter,l.h. Side |
|
- | |||||
| 2121 | 12564501WD | Plate,door Supp-e Ct |
|
- | |||||
| 2131 | 12564502WD | Plate,door Supp-e Ct |
|
- | |||||
| 2141 | 12564101 | Support,r.h. Basket |
|
- | |||||
| 2151 | 12564102 | Support,l.h. Basket |
|
- | |||||
| 2181 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 2201 | 12525501 | Slide, Drawer |
|
- |
