SELECT A DIAGRAM

01 - Bulkhead


02 - Top And Console


03 - Cabinet

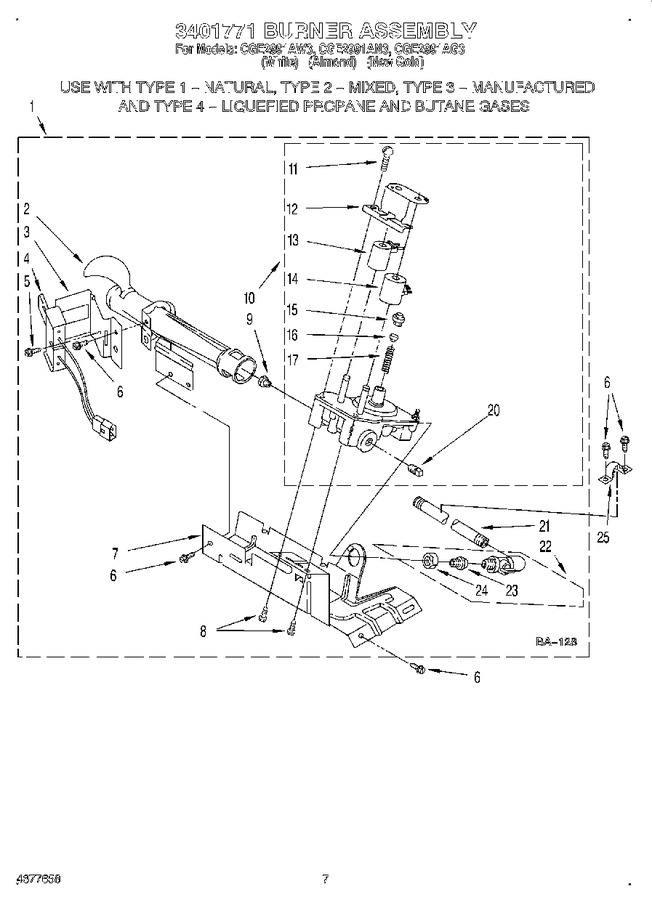

04 - 3401771 Burner Assembly, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3401771		Burner Assembly 60 Hz. (type 1, 2 & 3) (white Rodgers)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
7	693986		Base, Burner		Appelez-nous	-
8	WP693995		Screw, 8-18 X 3/8 (2)   (Replaces: 3387057)			Immediately	$ 7.55
9	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 36.59
9	15775		Orifice, Burner (type 2)		Appelez-nous	-
9	15419		Orifice, Burner (type 3)		Appelez-nous	-
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 36.59
9	WP234826		Orifice, Burner (type 1)   (Replaces: 234826)				$ 39.27
10	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
11	694421		Screw, Bracket Mounting (8-32 X 1/2) (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
15	WP694424		Leak Limiter   (Replaces: 694424)				$ 36.30
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	233273		Pipe, Gas Supply		Appelez-nous	-
22	345062		Valve & Union, Shut-off		Appelez-nous	-
23	3393767		Pipe, Tail				$ 144.63
24	233076		Nut, Compression				$ 43.19
25	341029		Clamp, Pipe		Appelez-nous	-
25	49572A		Conversion Kit (type 1, 2 & 3 To Type 4) (l.p.g.)   (Replaces: 694572)			Immediately	$ 36.19
	LIT3395330		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	LIT3401138		Label, Wiring Diagram		Appelez-nous	-
	LIT692257		Sheet, Top Lock Instruction		Appelez-nous	-
	LIT348772		Instructions, Multi-venting		Appelez-nous	-
	LIT3394996		Label, Operating Instructions		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	261891		New Gold (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	261890		New Gold		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86

    View Diagram in Separate Window       Print Part List
