SELECT A DIAGRAM

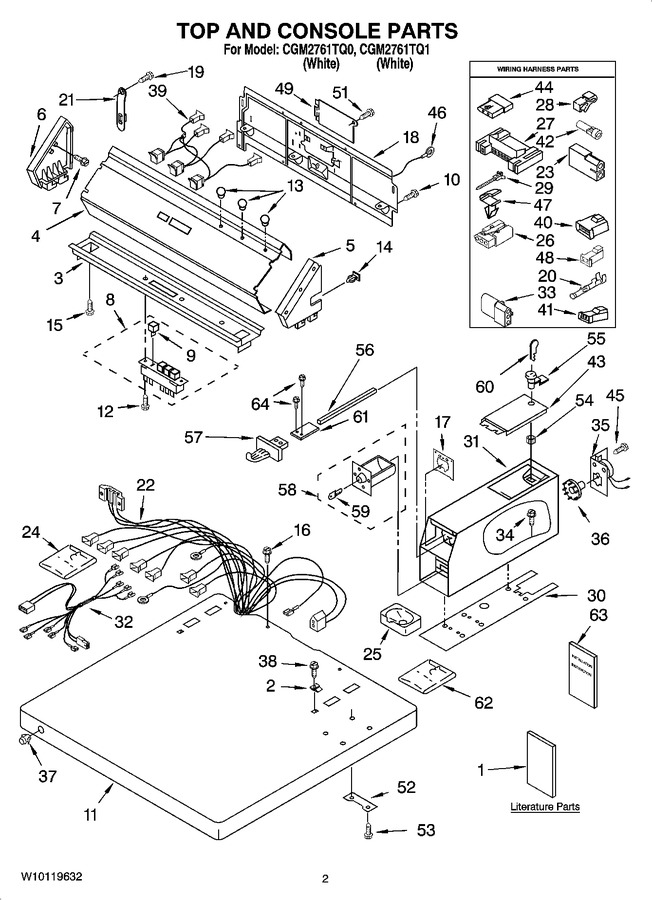

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 3401797 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10119632		Repair Parts List		Appelez-nous	-
1	8533569		Wiring Diagram		Appelez-nous	-
1	8577208		Instructions Installation		Appelez-nous	-
2	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.76
3	3361029		Bracket, Control				$ 34.04
4	8316634		Panel, Control				$ 256.07
5	8316516		Cap, End (r.h.)		Appelez-nous	-
6	3949734		Cap, End (l.h.)		Appelez-nous	-
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
8	WPW10330137		Switch, Pushbutton   (Replaces: 8316437)			Immediately	$ 339.56
9	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 339.56
10	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
11	3954665		Top				$ 145.66
12	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 11.40
13	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 13.14
14	689559		Nut, Push-in		Appelez-nous	-
15	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
16	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
17	279950		Plate, Chute Adapter (includes Illus. 25)   (Replaces: 3954761)			Immediately	$ 28.89
18	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 299.65
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
20	WP94614		Terminal   (Replaces: 94614)				$ 8.05
21	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17
22	WP8529870		Harness, Main   (Replaces: 8529870)				$ 276.98
23	717252		Receptacle, 2 Way		Appelez-nous	-
24	WP3406965		Kit, Vertical 8-coin (includes Illus. 55-57-58 60-61-62 & 63)   (Replaces: 3954807)			Immediately	$ 418.44
25	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 77.91
26	717315		Receptacle, 4-way		Appelez-nous	-
27	3395683		Housing Connector			Immediately	$ 54.45
28	W10113937		Clip, Ground   (Replaces: 357572)				$ 11.37
29	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
30	WP3954812		Cushion, Case   (Replaces: 3954812)				$ 32.66
31	WPW10461200		Case, Meter   (Replaces: 3406994)			Immediately	$ 402.38
32	3401126		Harness, Timer		Appelez-nous	-
33	3936144		Connector (3-circuit)				$ 21.22
34	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 7.48
35	W11451464		Timer, (includes 4-pin Cam)   (Replaces: W10045440)			Immediately	$ 307.82
36	WP339853		12-pin (15 Min)   (Replaces: 339853)				$ 8.11
36	WP339854		9-pin (20 Min)   (Replaces: 339854)				$ 6.80
36	51-161-6		Timing Cam (6-pin (30 Min))   (Replaces: 343777)				$ 34.52
36	WP339855		Timing Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.79
36	WP3387974		Timing Cam (3-pin (60 Min))   (Replaces: 3387974)				$ 8.74
37	387371		Lock, Plug				$ 11.36
37	358290		Top Lock		Appelez-nous	-
38	8281182		Screw 8-18 X 1-1/4				$ 5.33
39	8316640		Lights, Indicator Assembly				$ 60.24
40	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 7.30
41	WP3403499		Connector, 2 Position   (Replaces: 3403499)				$ 6.02
42	351297		Plug, Harness		Appelez-nous	-
43	W11283272		Door, Service   (Replaces: 3351136)				$ 111.17
44	717253		Plug, Terminal		Appelez-nous	-
45	339805		Screw, 10-32 X 3/16				$ 14.06
46	3398893		Ground Wire		Appelez-nous	-
47	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
48	351296		Receptacle		Appelez-nous	-
49	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
51	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
52	3347825		Plate-mounting (2)		Appelez-nous	-
53	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
54	WP90406		Nut, Cage   (Replaces: 90406)				$ 9.09
55	W11315637		Security Lock/key & Cam Assembly   (Replaces: 8316526)			Immediately	$ 40.47
56	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 78.95
57	W11126319		Slide Mechanism (vertical 8-coin) (dollar Vend)   (Replaces: 8316520)			Immediately	$ 310.89
57	W11312584		Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 32.97
57	8316265		Inserts (not Shown) (25¢)		Appelez-nous	-
58	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 178.05
61	3390424		Extension   (Replaces: 8316523)			Immediately	$ 71.66
62	8316524		Kit, Decal		Appelez-nous	-
63	8316532		Installation Instructions Coin Kit		Appelez-nous	-
64	WP3400029		Screw, 10-32 X 3/8   (Replaces: 3400029)			Immediately	$ 8.19

    View Diagram in Separate Window       Print Part List
