SELECT A DIAGRAM

01 - Bulkhead Parts

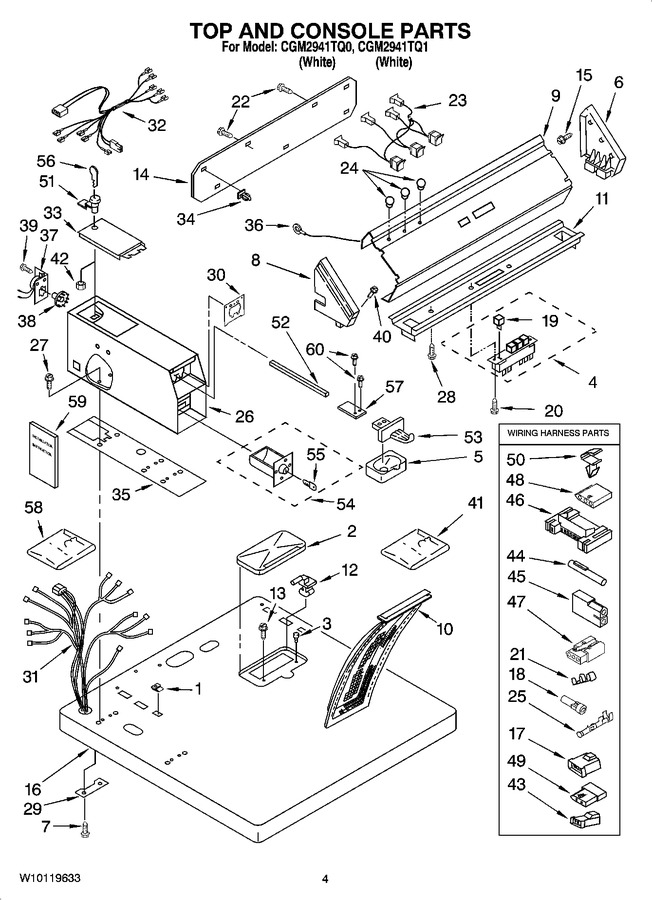

02 - Top And Console Parts


03 - Cabinet Parts


04 - 3401771 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
2	8283378		Cover, Lint Screen				$ 44.80
3	297535		Bumper, Lint Lid		Appelez-nous	-
4	WPW10330137		Switch, Pushbutton   (Replaces: 8316437)			Immediately	$ 339.56
5	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 77.91
6	3949737		Cap, End (r.h.)				$ 49.53
7	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
8	3402631		End Cap (l.h.)		Appelez-nous	-
9	W10127740		Panel, Control		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	3387361		Bracket, Control		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
13	W11693756		Screw, 8-18 X 3/8   (Replaces: 688983)			Immediately	$ 14.76
14	3387978		Panel, Rear Console		Appelez-nous	-
15	WPW10109200		Screw, 11-16 X 5/8   (Replaces: 97787)			Immediately	$ 8.80
16	8527847		Top		Appelez-nous	-
17	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 7.30
18	351297		Plug, Harness		Appelez-nous	-
19	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 339.56
20	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 11.40
21	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
22	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
23	3401177		Light, Indicator Assembly		Appelez-nous	-
24	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 13.14
25	WP94614		Terminal   (Replaces: 94614)				$ 8.05
26	3978748		Case, Meter		Appelez-nous	-
27	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 7.48
28	WP3390631		Screw, 10-16 X 1/32   (Replaces: 339554)				$ 8.25
29	3347825		Plate, Mounting		Appelez-nous	-
30	279950		Adapter Plate Chute Assembly (includes Illus. 5)   (Replaces: 3954761)			Immediately	$ 28.89
31	8529862		Harness, Wiring		Appelez-nous	-
32	3401126		Harness, Timer		Appelez-nous	-
33	W11283272		Door, Service   (Replaces: 3351136)				$ 111.17
34	689559		Nut, Push-in		Appelez-nous	-
35	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 32.66
36	690853		Wire, Ground		Appelez-nous	-
37	W11451464		Timer, (includes 4-pin Cam)   (Replaces: W10045440)			Immediately	$ 307.82
38	51-161-6		Timing Cam (6-pin (30 Min))   (Replaces: 343777)				$ 34.52
38	WP3387974		Timing Cam (3-pin (60 Min))   (Replaces: 3387974)				$ 8.74
38	WP339855		Timing Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.79
38	WP339854		Timing Cam (9 Pin (20 Min.))   (Replaces: 339854)				$ 6.80
38	WP339853		Timing Cam (12-pin (15 Min))   (Replaces: 339853)				$ 8.11
39	339805		Screw, 10-32 X 3/16				$ 14.06
40	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
41	WP3406965		Kit, Vertical 8-coin (includes Illus. 51-53-54 57-58-59 & 60)   (Replaces: 3954807)			Immediately	$ 418.44
42	WP90406		Nut, Cage   (Replaces: 90406)				$ 9.09
43	WP3403499		Connector, 2 Position   (Replaces: 3403499)				$ 6.02
44	351296		Receptacle		Appelez-nous	-
45	717252		Connector, 2-way		Appelez-nous	-
46	3395683		Connector, Housing			Immediately	$ 54.45
47	717315		Receptacle, 4-way		Appelez-nous	-
48	3936144		Connector				$ 21.22
49	717253		Plug, 2-way		Appelez-nous	-
50	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
51	W11315637		Security Lock/key & Cam Assembly   (Replaces: 8316526)			Immediately	$ 40.47
52	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 78.95
53	W11126319		Slide Mechanism (vertical 8-coin) (dollar Vend)   (Replaces: 8316520)			Immediately	$ 310.89
53	8316265		Inserts (not Shown) (25¢)		Appelez-nous	-
53	W11312584		Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 32.97
54	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 178.05
57	3390424		Extension   (Replaces: 8316523)			Immediately	$ 71.66
58	8316524		Kit, Decal		Appelez-nous	-
59	8316532		Installation Instructions Coin Kit		Appelez-nous	-
60	3400086		Screw, 10-32 X 3/8				$ 12.77

    View Diagram in Separate Window       Print Part List
