Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001015 Plug, Button (wht) 11 Appelez-nous -
2 12658904CQ Fz Dr Foam Assy (bsq)   (Replaces: 67001223) Special Order $ 700.32

3 67001231 Handle, Fz Door (bsq) Appelez-nous -
4 W10443315 Gasket, Fz Dr (wht)   (Replaces: 12683804W) Special Order $ 193.98

5 A3080002 Plug, Button (wht) Appelez-nous -
6 R9800670 Screw, Mounting   (Replaces: M0223230) 11 Special Order $ 10.58

7 67002136 Cap, Handle (stnls) 11 Special Order $ 5.84

8 67002160 Clip, Door Handle 11 Special Order $ 20.12

9 W10759523 Screw, Sm (bsq)   (Replaces: 67001691) 11 Special Order $ 6.88


    View Diagram in Separate Window     Print Icon   Print Part List

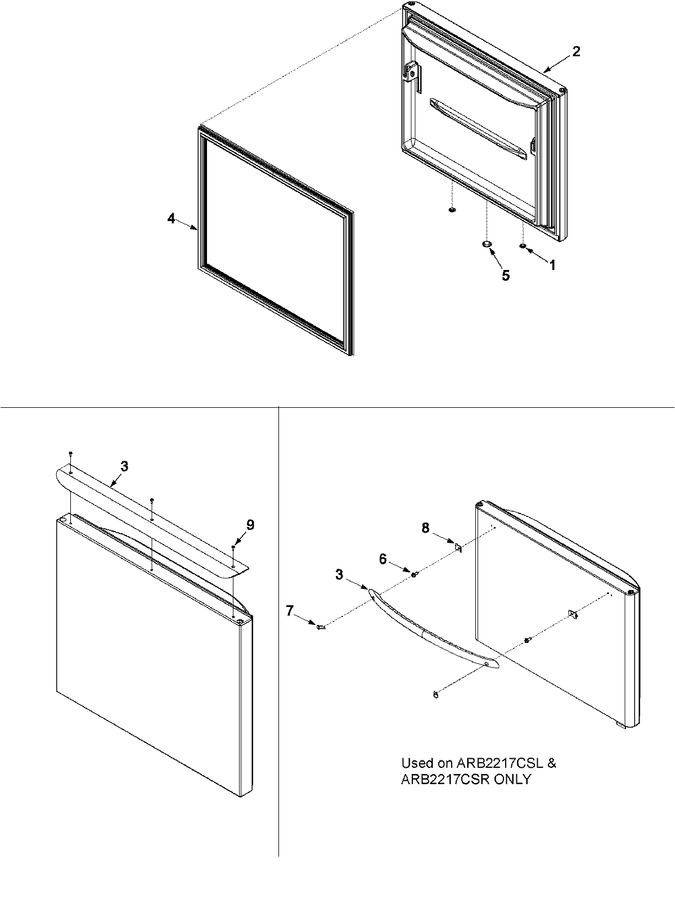

Diagram for ARB2217CC (BOM: PARB2217CC1)
