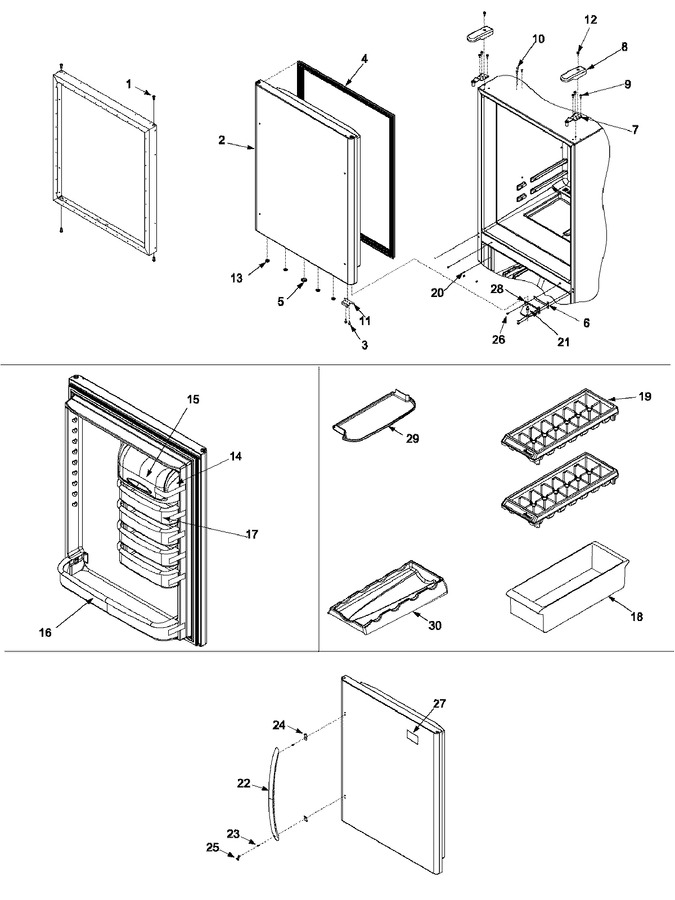

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10961002 | Bushing, Door (blk) |
|
- | |||||
| 2 | 67002067 | Ref Dr Foam Assy (stnls) |
|
- | |||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 4 | WPW10436248 | Gasket, Ref Dr (blk) (Replaces: 12683803B) |
|
$ 286.97 | |||||
| 5 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 6 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) |
|
Immediately | $ 47.13 | ||||
| 8 | 67001012 | Cover, Top Hinge (blk) |
|
$ 49.71 | |||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 10447109) |
|
Immediately | $ 14.75 | ||||
| 12 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.55 | ||||
| 13 | 67004838 | Plug, Button (blk) (Replaces: 67001016) |
|
$ 11.21 | |||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 15 | WP67003637 | Door, Dairy (Replaces: 67001307) |
|
Immediately | $ 82.67 | ||||
| 16 | 67001019 | Retainer, Door (Replaces: 67001280) |
|
Immediately | $ 112.90 | ||||
| 17 | WPW10371193 | Bucket, Med Ref Dr (Replaces: 67001998) |
|
Immediately | $ 74.80 | ||||
| 18 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 19 | WP841180A | Tray, Ice (Replaces: 67001205) |
|
Immediately | $ 47.84 | ||||
| 20 | WP489349 | Screw, Tf (Replaces: M0239730) |
|
Immediately | $ 8.43 | ||||
| 21 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.68 | |||||
| 22 | 67001914 | Handle, Ref. Door (stnls) |
|
- | |||||
| 23 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 24 | 67002160 | Clip, Door Handle |
|
$ 20.12 | |||||
| 25 | 67002136 | Cap, Handle (stnls) |
|
$ 5.84 | |||||
| 26 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 27 | Y12528501 | Nameplate (amana Plus) |
|
Immediately | $ 62.74 | ||||
| 28 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) |
|
$ 167.35 | |||||
| 29 | 67001655 | Pad, Grip Med Bucket |
|
- | |||||
| 30 | 67001656 | Trivet, Bottle |
|
$ 72.49 |
