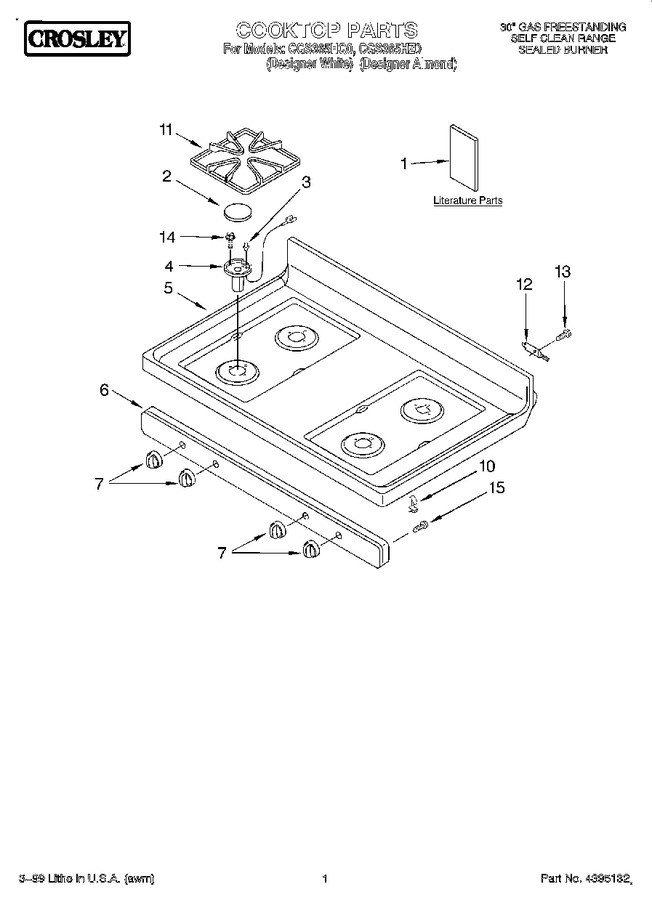

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer & Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8272363		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8272362		Guide, Use & Care		Appelez-nous	-
1	LIT8053552		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	8053468		(cap, Burner Small (1)) (gray)		Appelez-nous	-
2	8053463		Cap, Burner (large (3) (black))				$ 43.95
2	8053465		Cap, Burner Large (3) (gray)		Appelez-nous	-
2	8053466		Cap, Burner (small (1) (black))		Appelez-nous	-
3	W11032529		Ignitor, Burner (right Rear)   (Replaces: 8053719)				$ 69.90
3	W11032529		Ignitor, Burner (right Front)   (Replaces: 8053720)				$ 69.90
3	W11032529		Ignitor, Burner (left Rear)   (Replaces: 8053717)				$ 69.90
3	W11032529		Ignitor, Burner (left Front)   (Replaces: 8053718)				$ 69.90
4	3186478		Burner, 6,500 Btu (rr)				$ 77.59
4	WP8053360		Burner, 12500 Btu (lf, Lr, Rf)   (Replaces: 8053360)				$ 96.24
5	8053362		Cooktop (white)		Appelez-nous	-
5	8053363		Cooktop (almond)		Appelez-nous	-
6	3186007		Panel, Manifold (almond Model)		Appelez-nous	-
6	WP8523854		Panel, Manifold (white)   (Replaces: 3186006)				$ 276.74
7	WP3186135		Knob, Surface (4) (white)   (Replaces: 3186135)				$ 24.27
7	3186136		Knob, Surface (4) (almond)		Appelez-nous	-
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
11	8053391		Grate, Burner (4) (grey)				$ 242.28
11	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 133.35
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 12.55
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	WP3400861		Screw   (Replaces: 3400856)				$ 7.95
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
