Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11402521 Shelf, Glide   (Replaces: 67001927) Special Order $ 231.58

2 67001956 Shelf, Ref Stationary Appelez-nous -
3 WPW10328329 Pan, Pantry Assy   (Replaces: 67002001) Special Order $ 162.16

4 WP12227303WD Brace, Crisper E-ct   (Replaces: 67001059) Special Order $ 111.25

5 WP67006878 Glass, Crisper   (Replaces: 67001060) In-Stock Immediately $ 185.19

6 67001737 Extr, Crisper Front Appelez-nous -
7 WP67005864 Slide, Humidity Control   (Replaces: Y67001287) In-Stock Immediately $ 8.20

8 67001063 Seal, Front Crisper Special Order $ 38.97

9 67001768 Seal, Rear Crisper Special Order $ 9.45

10 67002002 Slide,pantry In-Stock Immediately $ 16.04

11 67001177 Pad, Glide Appelez-nous -
12 67002003 Bar,pantry Special Order $ 47.06

13 WP12531601 Tunnel,pantry   (Replaces: 67002004) Special Order $ 11.04

14 WPW10568041 Frame, Crisper   (Replaces: 67001056) In-Stock Immediately $ 137.23

15 WPW10671238 Rail, Center Crisper   (Replaces: 67001057) In-Stock Immediately $ 118.46

16 67002436 Frame, Crisper Pan Appelez-nous -
16 WP67002633 Pan, Crisper   (Replaces: 67002633) In-Stock Immediately $ 149.12

17 67002005 Gasket, Pantry Appelez-nous -
18 WP67001721 Support, Lh Crisper   (Replaces: 67001721) In-Stock Immediately $ 8.70

19 WP67001722 Support, Rh Crisper   (Replaces: 67001722) In-Stock Immediately $ 8.93

20 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

21 WP67001716 Hook, Ladder   (Replaces: 67001716) In-Stock Immediately $ 11.14

22 WP67001719 Track, Deli Drawer   (Replaces: 67001719) In-Stock Immediately $ 8.99

23 67001923 Divider, Pantry Special Order $ 21.04

NI 67002006 Crisper Assy Appelez-nous -
NI 67002007 Pantry Assy Appelez-nous -
NI 67002676 Extension, Ref Shelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

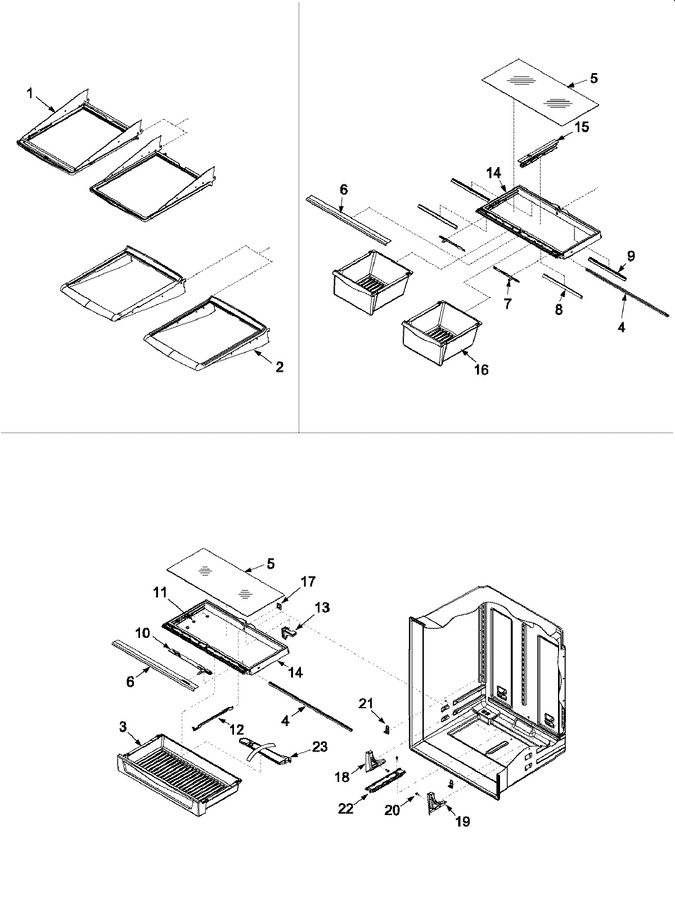

Diagram for ARB2217CW (BOM: PARB2217CW0)
