SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer & Broiler


06 - Door

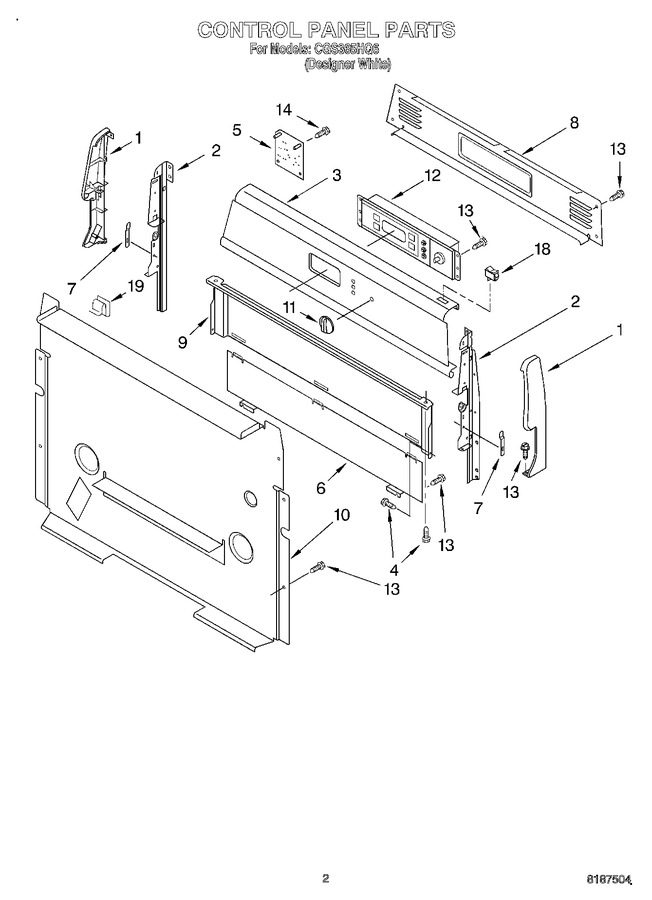

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186191		Endcap (white Right Hand)		Appelez-nous	-
1	3186190		Endcap (white Left Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	8272676		Panel, Backguard (white)		Appelez-nous	-
4	W10276642		Screw   (Replaces: 4449746)				$ 6.41
5	WPW10331686		Module, Spark   (Replaces: 8273970)			Immediately	$ 393.86
6	8053505		Shield, Lower Heat				$ 165.89
7	3196200		Clip, Spring (2)				$ 10.45
8	8272474		Cover, Upper		Appelez-nous	-
9	8053910		Shield, Heat		Appelez-nous	-
10	8273132		Cover, Lower		Appelez-nous	-
11	8053352		Knob, 150 Control (white)		Appelez-nous	-
12	3196971		Control, Range (white)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
18	3149360		Switch, Rocker (white)				$ 89.01
19	WP8273564		Clip   (Replaces: 8273564)				$ 12.66

    View Diagram in Separate Window       Print Part List
