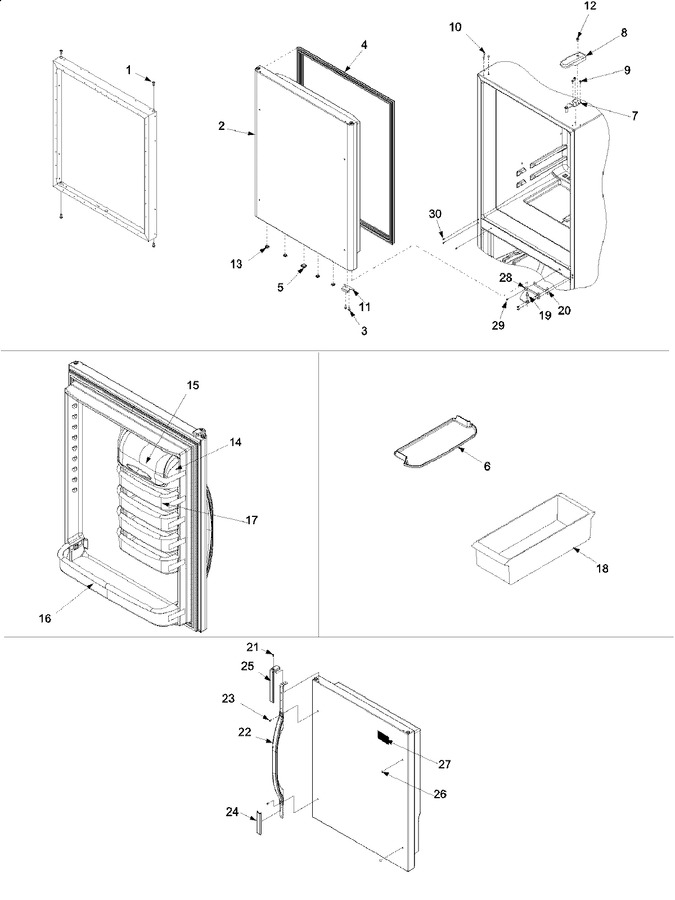

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 2 | 67001009 | Ref Dr Foam Assy (wht) |
|
- | |||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.76 | ||||
| 4 | W10443313 | Gasket, Ref Dr (wht) (Replaces: 12683803W) |
|
$ 343.82 | |||||
| 5 | A3080002 | Plug, Button (wht) |
|
- | |||||
| 6 | 67001655 | Pad, Grip Med Bucket |
|
- | |||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) |
|
Immediately | $ 44.89 | ||||
| 8 | 67001014 | Cover, Top Hinge (wht) |
|
$ 21.28 | |||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 9.38 | |||||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 11 | 12968202W | Stop, Door (wht) (Replaces: 10447108) |
|
$ 65.99 | |||||
| 12 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.19 | ||||
| 13 | 67001015 | Plug, Button (wht) |
|
- | |||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001017) |
|
Immediately | $ 83.82 | ||||
| 15 | WP67003637 | Door, Dairy (Replaces: 67001307) |
|
Immediately | $ 78.73 | ||||
| 16 | 67001019 | Retainer, Door (Replaces: 67001280) |
|
Immediately | $ 107.52 | ||||
| 17 | WPW10371193 | Bucket, Med Ref Dr (Replaces: 67001998) |
|
Immediately | $ 74.80 | ||||
| 18 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 19 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.27 | |||||
| 20 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.00 | ||||
| 21 | 12248201 | Screw, Hndl Cone |
|
$ 5.48 | |||||
| 22 | 67001912 | Handle, Ref Door (wht) |
|
- | |||||
| 23 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 9.38 | |||||
| 24 | 67001126 | Trim, Handle Btm Ref Dr (wht) |
|
- | |||||
| 25 | 67001129 | Trim, Top Handle (wht) |
|
- | |||||
| 26 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) |
|
Immediately | $ 5.98 | ||||
| 27 | Y12528501 | Nameplate (amana Plus) |
|
Immediately | $ 59.75 | ||||
| 28 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) |
|
$ 66.47 | |||||
| 29 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.02 | |||||
| 30 | WP489349 | Screw, Tf (Replaces: M0239730) |
|
Immediately | $ 7.88 |
