SELECT A DIAGRAM

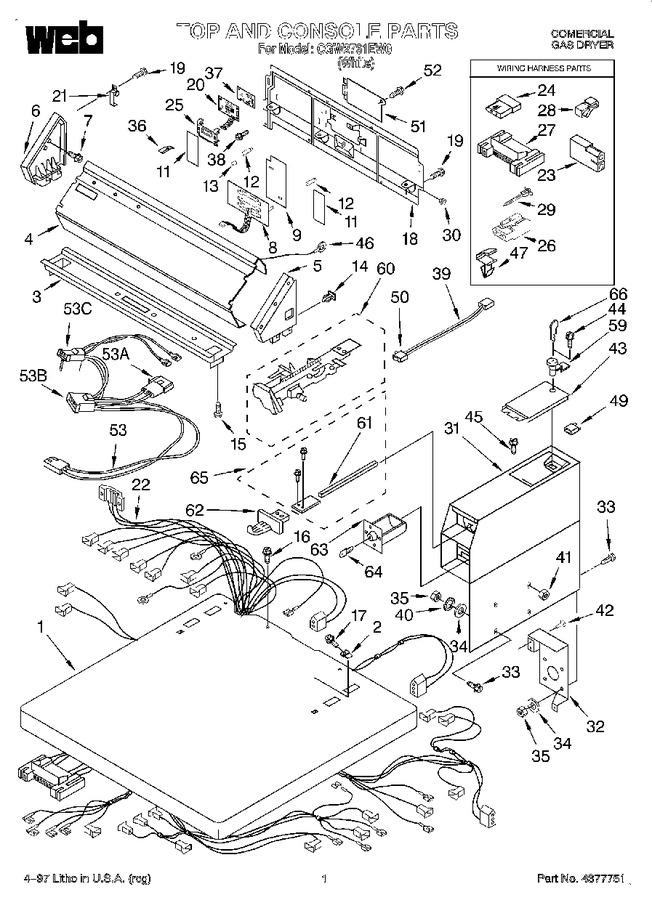

01 - Top And Console


02 - Cabinet


03 - Bulkhead, Lit/optional


04 - 3401797 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3399304		Top, Cabinet		Appelez-nous	-
2	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.76
3	3950800		Bracket, Control		Appelez-nous	-
4	3402798		Panel, Control		Appelez-nous	-
5	3949737		Cap, End (r.h.)				$ 49.53
6	3949734		Cap, End (l.h.)		Appelez-nous	-
7	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
8	3951035		Switch, Membrane		Appelez-nous	-
9	3950773		Backer Plate		Appelez-nous	-
10	WPW10366705		Screw   (Replaces: 3393909)				$ 7.88
11	3950775		Backer Plate, Side (2)		Appelez-nous	-
12	3950774		Mounting Stud		Appelez-nous	-
13	3951768		Cap, Stud		Appelez-nous	-
14	689559		Nut, Push-in		Appelez-nous	-
15	690853		Screw, Ground		Appelez-nous	-
16	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
17	WP388326		Screw (2)   (Replaces: 388326)				$ 9.29
18	3406471		Panel, Rear (upper)		Appelez-nous	-
19	WP488729		Screw, 8-18 X 1/2 (3)   (Replaces: 3390647)			Immediately	$ 8.28
20	3407139		Display Board		Appelez-nous	-
21	387402		Hinge (2)				$ 5.84
22	3406268		Harness, Main		Appelez-nous	-
23	717252		Receptacle, 2 Way		Appelez-nous	-
24	717253		Receptacle (2-way)		Appelez-nous	-
25	3949599		Lens, Display		Appelez-nous	-
26	717315		Receptacle, 4-way		Appelez-nous	-
27	3395683		Housing Connector			Immediately	$ 54.45
28	3397658		Clip, Ground		Appelez-nous	-
29	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
30	3399629		Bushing, Snap		Appelez-nous	-
31	3951148		Case, Meter		Appelez-nous	-
32	3399684		Bracket, Meter Case		Appelez-nous	-
33	3363434		Bolt, 5/16-18 X 3/4 (3)		Appelez-nous	-
34	WP348197		Washer (3)   (Replaces: 348197)				$ 7.55
35	90984		Nut (3)		Appelez-nous	-
36	3363338		Clip (2)		Appelez-nous	-
37	3407137		Control Board		Appelez-nous	-
38	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
39	3406269		Wire Harness		Appelez-nous	-
40	3363435		Washer		Appelez-nous	-
41	3363433		Nut, Break- A-way (2)		Appelez-nous	-
42	3363339		Rivet (3)		Appelez-nous	-
43	W11283272		Door, Service   (Replaces: 3363386)				$ 111.17
44	358409		Screw & Washer		Appelez-nous	-
45	3394926		Screw, No. 10		Appelez-nous	-
46	3397996		Wire, Ground		Appelez-nous	-
47	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
48	686770		Protector Support		Appelez-nous	-
49	3402784		Switch				$ 8.09
50	3402821		Switch, Vault Counter		Appelez-nous	-
51	3387680		Cover, Terminal Block		Appelez-nous	-
52	WP308685		Screw (2)   (Replaces: 3393008)			Immediately	$ 7.87
53	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 255.13
53A	697779		Plug, 3-way		Appelez-nous	-
53B	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 7.30
53C	WP3403499		Connector, 2 Position   (Replaces: 3403499)				$ 6.02

    View Diagram in Separate Window       Print Part List
