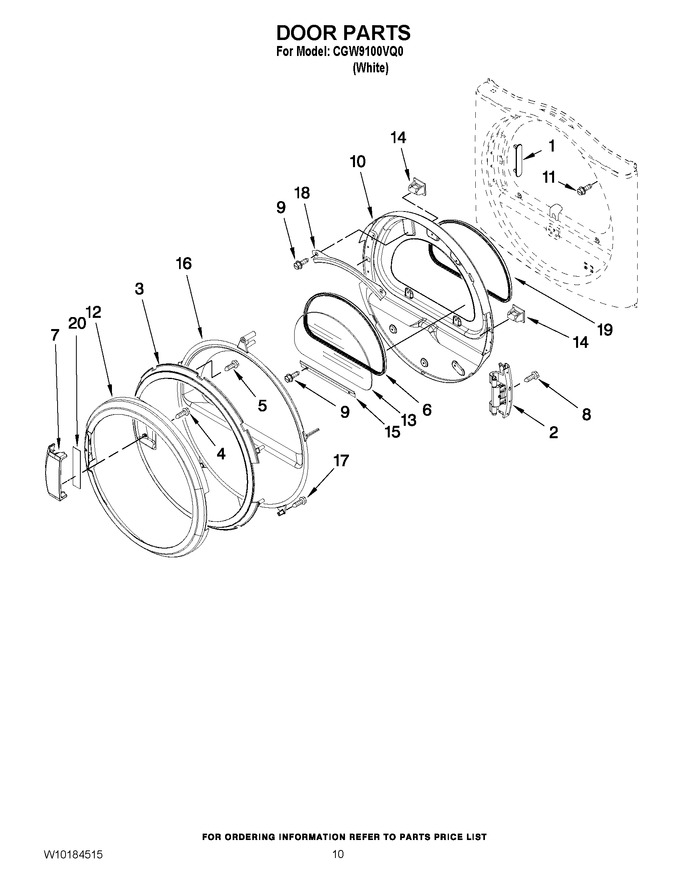

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8565119 | Plug Strip (inner Door) |
|
$ 93.64 | |||||
| 2 | WPW10304672 | Door, Hinge Assembly (Replaces: 8578887) |
|
Immediately | $ 221.41 | ||||
| 3 | W10137473 | Door Screen Intermediate Assy. (rotational) Intermediate |
|
- | |||||
| 4 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.19 | ||||
| 5 | 3400618 | Screw |
|
$ 64.70 | |||||
| 6 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 26.88 | |||||
| 7 | W10850397 | Handle, Door (includes Illus. 20.) (Replaces: W10117477) |
|
$ 34.76 | |||||
| 8 | WPW10159996 | Screw, (Replaces: W10159996) |
|
$ 7.68 | |||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.68 | |||||
| 10 | WPW10164062 | Door Assembly (inner) (includes Illus. 1 & 14) (Replaces: 8578933) |
|
$ 337.21 | |||||
| 11 | WP355515 | Screw (Replaces: 355515) |
|
$ 7.67 | |||||
| 12 | W11661105 | Door, Outer Ring (Replaces: W10112916) |
|
$ 171.10 | |||||
| 13 | WPW10286878 | Window (Replaces: 8565117) |
|
$ 261.68 | |||||
| 14 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 15 | W10822054 | Retainer-lower (Replaces: 8519354) |
|
Immediately | $ 17.15 | ||||
| 16 | W10137471 | Door, Intermediate (stationary) |
|
- | |||||
| 17 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.94 | |||||
| 18 | 8519356 | Retainer, Upper |
|
- | |||||
| 19 | N/P | Door Seal (not Serviceable) |
|
- | |||||
| 20 | WPW10112927 | Pad, Door Handle (Replaces: W10112927) |
|
$ 7.91 |
