Diagram for 01 - Top And Cabinet Parts
01 - Top And Cabinet Parts

Diagram for 02 - Door And Latch Parts
02 - Door And Latch Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

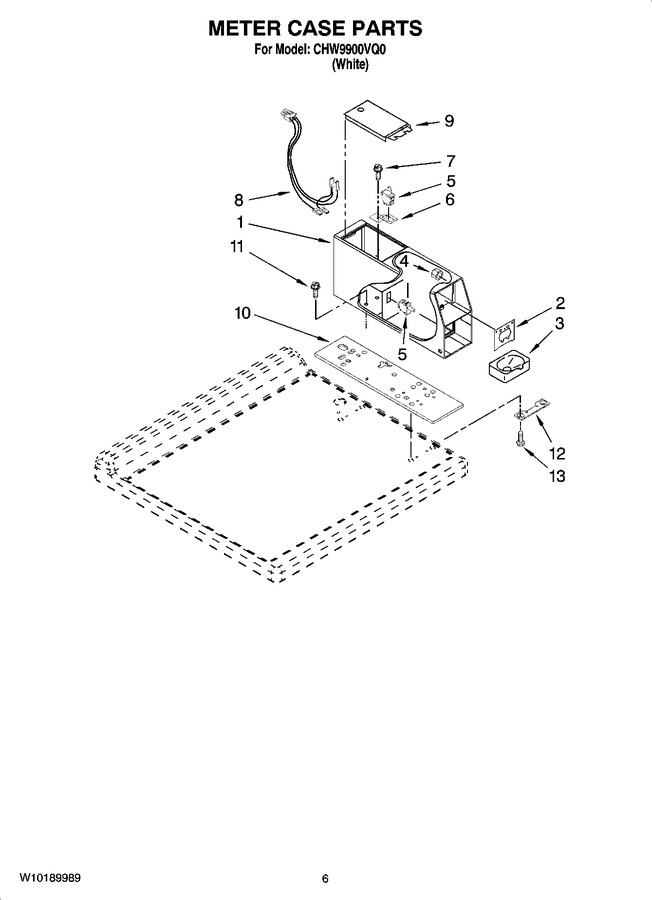

Diagram for 04 - Meter Case Parts
04 - Meter Case Parts

Diagram for 05 - Dispenser Parts
05 - Dispenser Parts

Diagram for 06 - Tub And Basket Parts
06 - Tub And Basket Parts

Diagram for 07 - Pump And Motor Parts, Optional Parts (not Included)
07 - Pump And Motor Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10171131 Meter Case Appelez-nous -
2 279950 Plate, Chute Adapter Assembly (includes Item 3)   (Replaces: 3954761) In-Stock Immediately $ 28.89

3 WP385421 Funnel, Coin   (Replaces: 385421) In-Stock Immediately $ 74.20

4 WP3400029 Nut, Adapter Plate (3)   (Replaces: 3400029) In-Stock Immediately $ 7.76

5 WPW10131838 Switch - Vault & Service Door   (Replaces: W10131838) Special Order $ 23.91

6 W11204533 Bracket, Service Switch   (Replaces: W10133508) Appelez-nous -
7 WPW10139210 Screw, 8-18 X 5/16   (Replaces: W10139210) Special Order $ 7.50

8 W10847806 Wire Harness, Sensor Switch   (Replaces: W10139456) Special Order $ 113.80

9 W11283272 Service Door Assembly   (Replaces: 3351136) Special Order $ 105.88

10 W10137448 Cushion, Meter Case Appelez-nous -
11 W11715721 Screw, 5/16-24 X 1   (Replaces: 3349065) Special Order $ 7.12

12 3347825 Plate, Meter Case Mounting (2) Appelez-nous -
13 W10841059 Screw, 10-16 X 3/4   (Replaces: 98445) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for CHW9900VQ0
