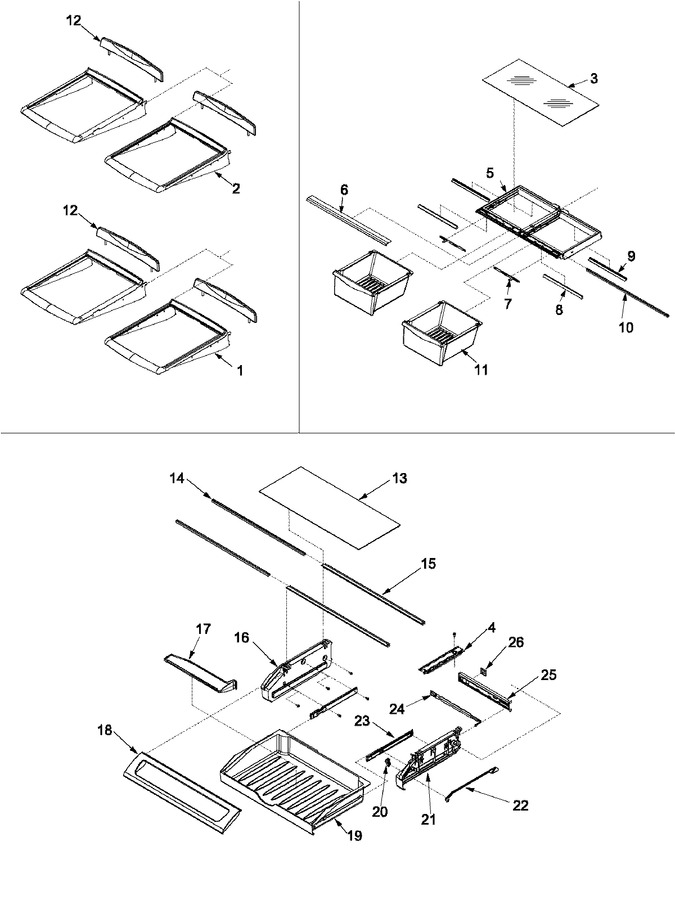

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67003236 | Shelf, Glide Out |
|
- | |||||
| 2 | 67003252 | Shelf, Stationary |
|
- | |||||
| 3 | 67002749 | Glass, Crisper |
|
- | |||||
| 4 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 7.30 | ||||
| 4 | WP67001719 | Track, Deli Drawer (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 5 | 67002755 | Frame, Crisper |
|
- | |||||
| 6 | 67002486 | Extr-36`` Crsp Frnt |
|
- | |||||
| 7 | WP67005864 | Slide, Humidity Control (Replaces: Y67001287) |
|
Immediately | $ 8.20 | ||||
| 8 | WP67003417 | Seal-36`` Frnt Crsp (Replaces: 67002487) |
|
$ 9.70 | |||||
| 9 | WP67002513 | Seal, Rear Crisper (Replaces: 67002513) |
|
$ 7.98 | |||||
| 10 | WP12642303WD | Brace, Crisper E-ct (Replaces: 67002748) |
|
$ 112.26 | |||||
| 11 | WP67004515 | Pan, Crisper (Replaces: 67002756) |
|
Immediately | $ 176.72 | ||||
| 11 | W11206718 | Front, Crisper Pan (Replaces: 67002457) |
|
$ 324.43 | |||||
| 12 | 67002484 | Extension-ref Shelf |
|
- | |||||
| 13 | 67002761 | Glass, Pantry |
|
$ 103.45 | |||||
| 14 | WP12227305WD | Brace, Pantry (Replaces: 67002330) |
|
$ 108.36 | |||||
| 15 | W11812285 | Extr, Glass Support (Replaces: 67002331) |
|
$ 53.33 | |||||
| 16 | M0238636 | Screw-sm |
|
- | |||||
| 16 | W10874836 | End Cap, Pantry (lt) (Replaces: 67002757) |
|
Immediately | $ 38.43 | ||||
| 17 | WP67002759 | Divider, Pantry (Replaces: 67002759) |
|
Immediately | $ 61.25 | ||||
| 18 | W10827015 | Pantry Lid Assy (Replaces: 67003170) |
|
Immediately | $ 175.81 | ||||
| 19 | WP67003531 | Drawer, Pantry (Replaces: 67002747) |
|
$ 162.82 | |||||
| 20 | W11498983 | Knob, Temperature Control (Replaces: 67003046) |
|
$ 30.64 | |||||
| 21 | W10874836 | End Cap, Pantry (rt) (Replaces: 67003281) |
|
Immediately | $ 38.43 | ||||
| 21 | M0238636 | Screw-sm |
|
- | |||||
| 22 | WP67003795 | Bar, Temp Control (Replaces: 67002754) |
|
$ 8.45 | |||||
| 23 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 23 | WPW10235370 | Glide, Pantry Door (Replaces: 67002752) |
|
Immediately | $ 199.80 | ||||
| 24 | WP67003793 | Slide, Temperature Control (Replaces: 67002327) |
|
Immediately | $ 78.49 | ||||
| 25 | 12656202 | Housing, Control (Replaces: 67002328) |
|
$ 148.84 | |||||
| 26 | 67002329 | Gasket, Pantry |
|
$ 22.09 |
