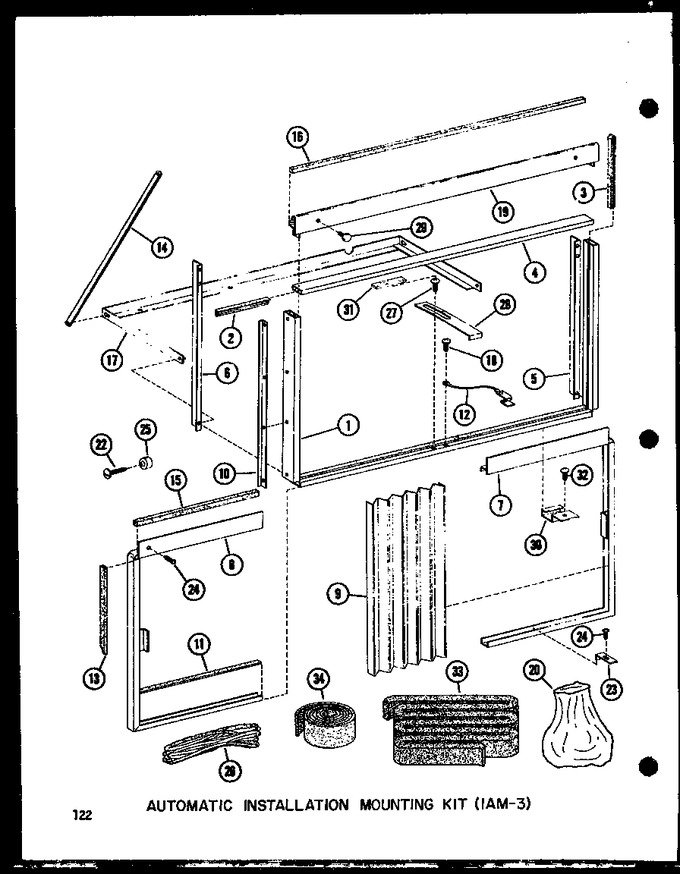

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5126802 | Stationary Frame, Formed |
|
- | |||||
| 2 | B5108102 | Gasket Mounting |
|
- | |||||
| 3 | B5108101 | Gasket Mounting |
|
- | |||||
| 4 | C5264302 | Channel Gasket |
|
- | |||||
| 5 | B5127103 | Angle Support |
|
- | |||||
| 6 | B5127104 | Angle Support |
|
- | |||||
| 7 | B5128801 | Weldment Kit |
|
- | |||||
| 8 | B5128802 | Weldment Kit |
|
- | |||||
| 9 | D5380301 | Curtain |
|
- | |||||
| 10 | B5126901 | Bracket Strip, Curtain |
|
- | |||||
| 11 | A3030326 | Gasket |
|
- | |||||
| 12 | B5113102 | Assembly, Cable |
|
- | |||||
| 13 | A3030325 | Gasket, Closure Plate Flange, |
|
- | |||||
| 14 | B5107701 | Support |
|
- | |||||
| 15 | A3030313 | Gasket (per Foot) |
|
- | |||||
| 16 | A3030310 | Gasket (per Foot) |
|
- | |||||
| 17 | D5479901 | Frame Mounting |
|
- | |||||
| 18 | M0228029 | Screw K |
|
- | |||||
| 19 | C5265001 | Rail |
|
- | |||||
| 20 | B1139903 | Assembly Accessory |
|
- | |||||
| 22 | M0212062 | Screw |
|
- | |||||
| 23 | A4622201 | Clamp |
|
- | |||||
| 24 | M0236004 | Screw |
|
- | |||||
| 25 | A4065501 | Spacer K |
|
- | |||||
| 26 | M0275521 | Sealer |
|
- | |||||
| 27 | M0228241 | Screw |
|
- | |||||
| 28 | B4791301 | Sill Clamp |
|
- | |||||
| 29 | M0234539 | Thumb Screw |
|
- | |||||
| 30 | B5127401 | Clip |
|
- | |||||
| 31 | A3030302 | Gasket |
|
- | |||||
| 32 | M0211532 | Screw |
|
- | |||||
| 33 | A4660601 | Gasket, Sash Seal Strip |
|
- | |||||
| 34 | A3030302 | Gasket |
|
- |
