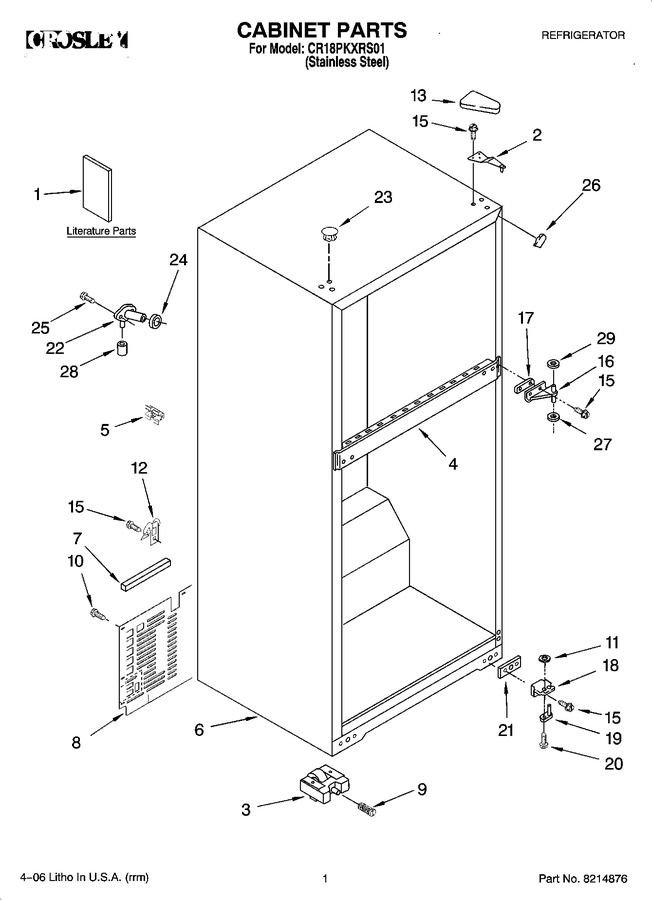

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	2265591		Service & Wiring Sheet		Appelez-nous	-
1	2266162		Energy Label		Appelez-nous	-
1	2316076		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 119.42
3	2217757		Roller-front		Appelez-nous	-
5	2266506		Spacer-back-cb (not A Serviceable Part)				$ 14.39
7	2264535		Foam Block		Appelez-nous	-
8	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 113.77
9	2222100		Screw				$ 104.80
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
11	WP488296		Washer   (Replaces: 488296)			Immediately	$ 7.55
12	549193		Clamp-cord				$ 14.06
13	WP2213363		Cover, Hinge   (Replaces: 2213363)			Immediately	$ 19.12
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 85.08
17	2215385		Shim, Hinge Center				$ 91.34
18	WP2325482		Hinge Butt   (Replaces: 2221926)			Immediately	$ 80.00
19	9791682		Hinge-pin, Bottom				$ 26.60
20	WP3428970		Screw   (Replaces: 3428970)				$ 11.53
21	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 8.16
22	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 12.59
23	WP2183998		Hole Plug (6)   (Replaces: 2183998)				$ 19.01
24	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
25	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
26	W11500943		Corner Filler (2)   (Replaces: 2215384)				$ 7.98
27	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
28	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.67
29	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
