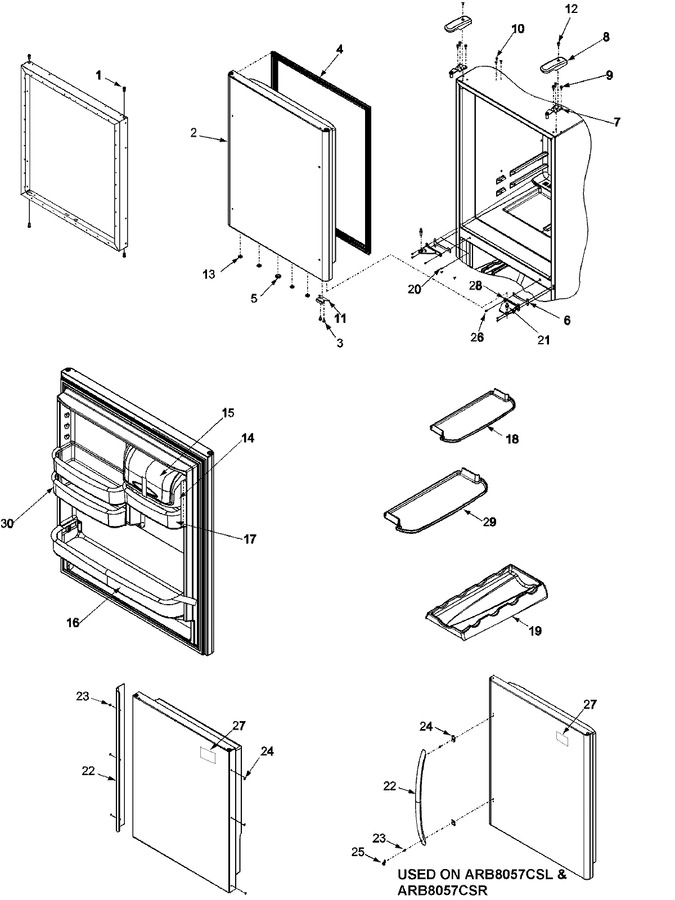

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10961002		Bushing, Door (blk)		Appelez-nous	-
2	67002209		Ref Dr Foam Assy (stnls)		Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
4	W10849442		Gasket, Ref Door (blk)   (Replaces: 12683805B)				$ 344.33
5	A3080001		Plug, Button (blk)		Appelez-nous	-
6	WPM0274062		Shim, Non Metal (blk)   (Replaces: M0274062)			Immediately	$ 24.43
7	WP12566606ED		Hinge, Top (blk)   (Replaces: 67001011)			Immediately	$ 44.89
8	67001012		Cover, Top Hinge (blk)				$ 47.34
9	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.38
10	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 7.76
11	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.05
12	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.19
13	67004838		Plug, Button (blk)   (Replaces: 67001016)				$ 10.68
14	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
15	WP67003637		Door, Dairy   (Replaces: 67002842)			Immediately	$ 78.73
16	67002477		Retainer, Door		Appelez-nous	-
17	WPW10371193		Bucket, Med Ref Dr   (Replaces: 67001998)			Immediately	$ 74.80
18	67001655		Pad, Grip Med Bucket		Appelez-nous	-
19	67001656		Trivet, Bottle				$ 69.04
20	WP489349		Screw, Tf   (Replaces: M0239730)			Immediately	$ 7.88
21	12002311		Pin, Hinge (ctr)   (Replaces: 10351003)				$ 7.85
22	67001914		Handle, Ref. Door (stnls)		Appelez-nous	-
23	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.38
24	67002160		Clip, Door Handle				$ 20.12
26	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.02
27	Y12528501		Nameplate (amana Plus)			Immediately	$ 59.75
28	WP12607104ED		Hinge, Center (blk)   (Replaces: 67001167)				$ 152.73
29	67002088		Pad, Gripper (large)		Appelez-nous	-
30	67002131		Bucket, Lg Ref Dr		Appelez-nous	-
