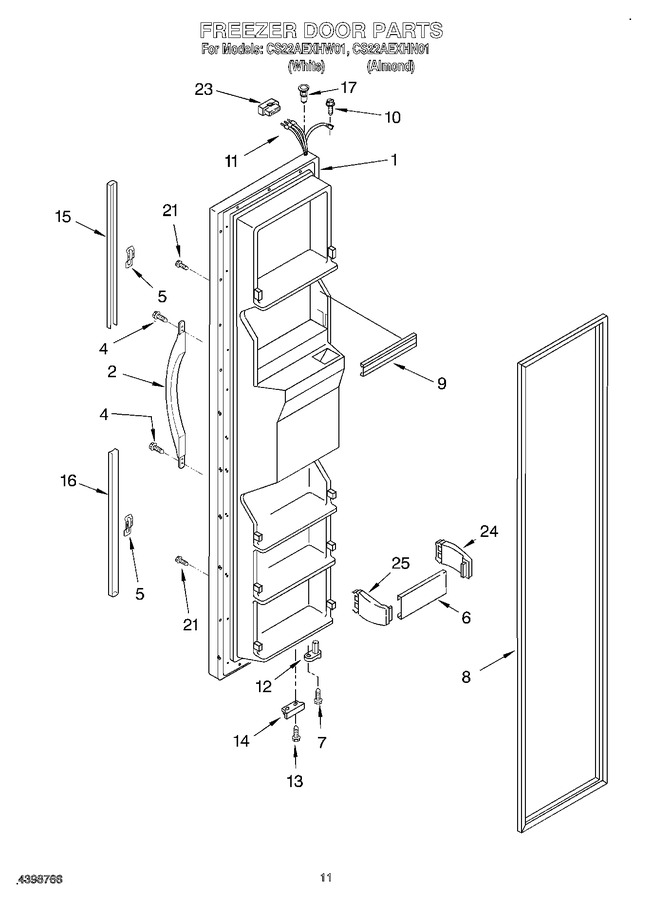

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2211599N		Freezer Door (includes Item 8 (almond And Dispenser Front Parts))		Appelez-nous	-
1	2211599W		Freezer Door (includes Item 8 (white)		Appelez-nous	-
2	2186649N		Handle, Center (almond)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
6	2195919		Door, Shelf (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159072		Door Gasket, Magnetic (repair) (mist Beige)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2198271		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2195950		Bracket, Door Stop				$ 5.84
15	2194971N		Extension, Top (almond)		Appelez-nous	-
15	2194971W		Extension, Top (white)				$ 44.85
16	2194969W		Extension, Bottom (white)				$ 5.51
16	2194969N		Extension, Bottom (almond)		Appelez-nous	-
17	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
21	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
23	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
24	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 12.55
25	2195917		Endcap (left)		Appelez-nous	-
