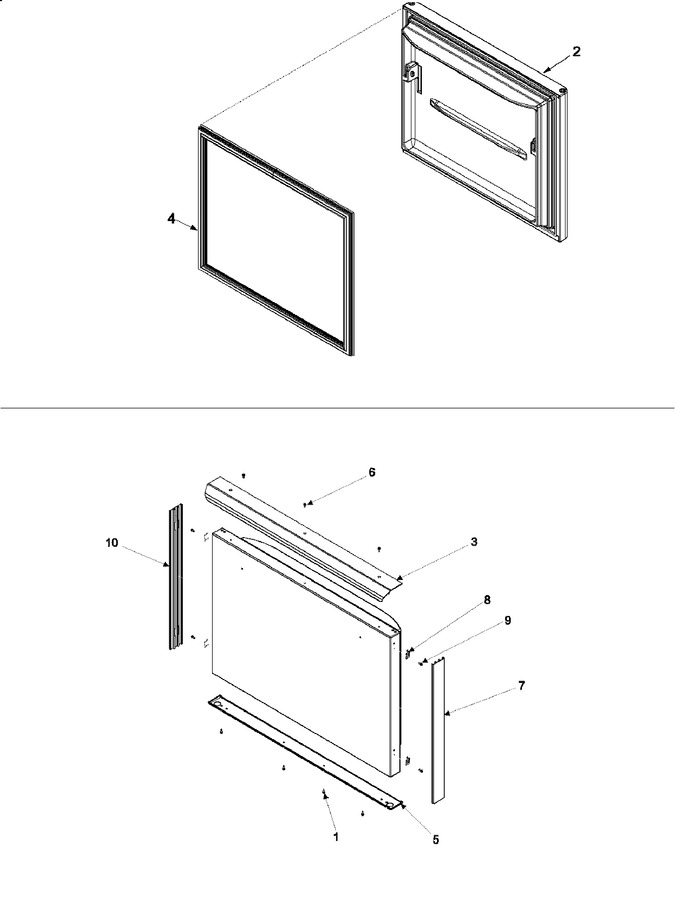

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 14.75
2	67002115		Door Assy., Frz. Foam (blk)		Appelez-nous	-
3	67002247		Handle, Fz Dr (stnls)xx		Appelez-nous	-
4	W10436252		Gasket, Fz Door (blk)   (Replaces: 12683806B)			Immediately	$ 362.28
5	67002194		Trim, Door Bottom (stnls)		Appelez-nous	-
6	67006529		Screw, Sm (stnls)   (Replaces: M0213530)				$ 13.47
7	67002337		Trim, Fz Vertical Door (stnls)		Appelez-nous	-
8	67002451		Clip				$ 8.86
9	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
10	67002474		Trim, Fz Vertical (stnls)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
