01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)

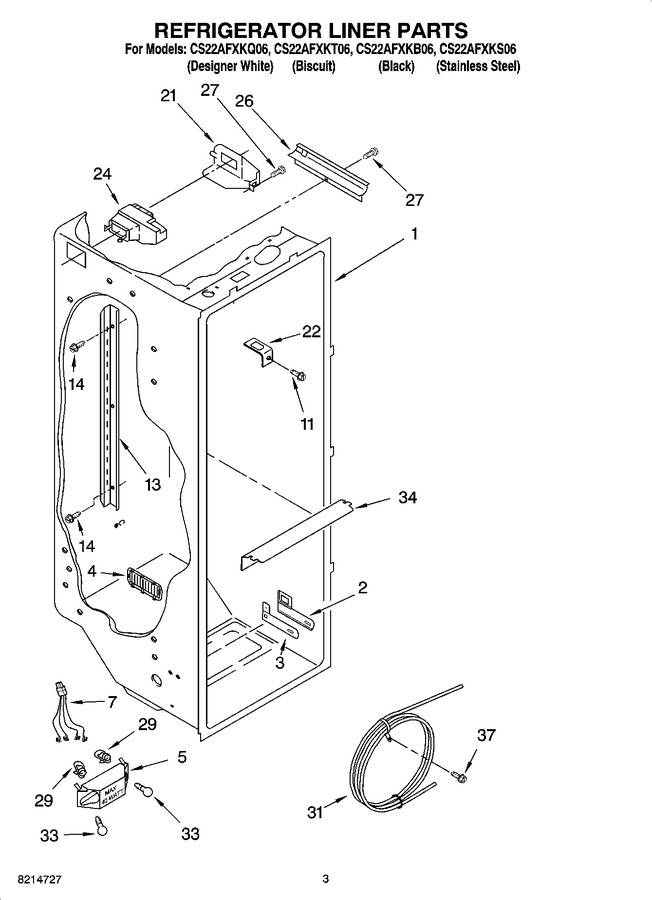

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Lights				$ 62.54
7	2311637		Wire Harness, Dual Crisper Lights   (Replaces: 2256037)				$ 140.23
11	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
13	2206270		Shelf Ladder		Appelez-nous	-
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
21	2152019		Air Diffuser Cover				$ 86.03
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2209753)			Immediately	$ 99.78
26	2150331		Cover, Conduit				$ 24.40
27	W10759522		Screw   (Replaces: 486298)				$ 7.75
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
31	WP2256126		Reservoir   (Replaces: 2256126)				$ 168.85
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	2209769		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-
