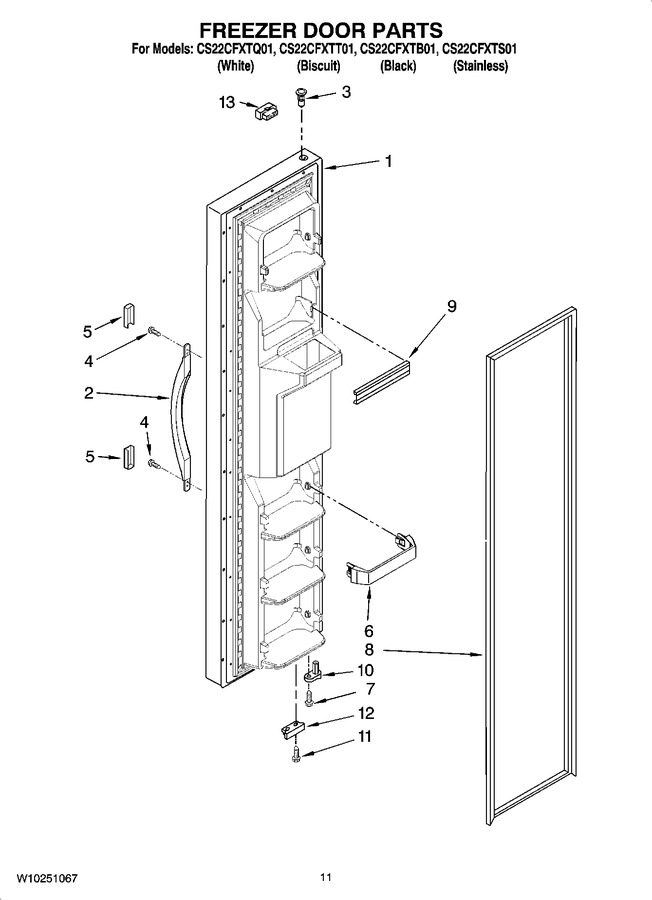

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309946W | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | 2309946T | Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 1 | 2309946B | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2323865S | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | 2304413W | Handle (white) |
|
- | |||||
| 2 | 2304413T | Handle (biscuit) |
|
- | |||||
| 2 | 2304413B | Handle (black) |
|
- | |||||
| 2 | 2186649B | Handle (stainless) |
|
$ 72.96 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 5 | 2193353B | Trim, Handle (stainless) |
|
$ 5.85 | |||||
| 5 | 2194272W | Trim, Handle (white) |
|
$ 5.85 | |||||
| 5 | 2194272T | Trim, Handle (biscuit) |
|
$ 6.64 | |||||
| 5 | WP2194272B | Trim, Handle (black) (Replaces: 2194272B) |
|
$ 7.30 | |||||
| 6 | WP2309717 | Trivet (4) (Replaces: 2309717) |
|
$ 58.64 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces: 2309654) |
|
$ 325.91 | |||||
| 8 | 2159072 | Door Gasket, Magnetic (mist Beige) (Replaces: 2309604) |
|
$ 323.60 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2209680) |
|
Immediately | $ 24.27 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 7.20 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 12 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 12 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 42.79 | |||||
| 13 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 |
