SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

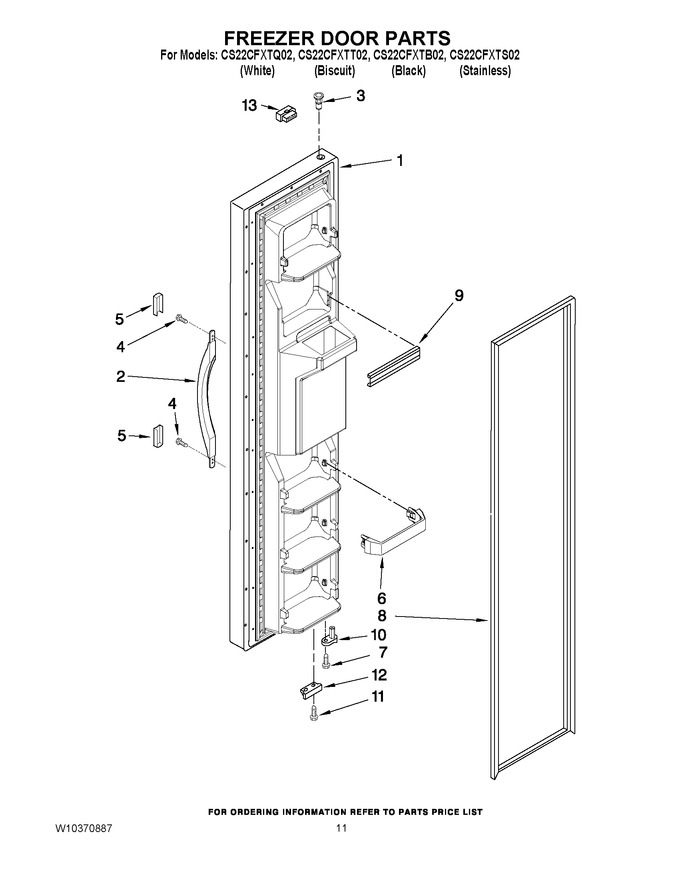

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2323865S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	2309946B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2309946T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2309946W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10285542		Handle (white)				$ 71.46
2	W10285541		Handle (biscuit)				$ 68.60
2	W10285540		Handle (black)				$ 71.85
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	2194272W		Trim, Handle (white)				$ 5.85
5	WP2194272B		Trim, Handle (black)   (Replaces: 2194272B)				$ 6.95
5	2194272T		Trim, Handle (biscuit)				$ 6.64
6	WP2309717		Trivet (4)   (Replaces: 2309717)				$ 55.85
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 310.39
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307489)			Immediately	$ 23.11
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	W10185566		Bracket, Door Stop (silver)		Appelez-nous	-
12	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
13	WP2154473		Connector   (Replaces: 2154473)				$ 23.65

    View Diagram in Separate Window       Print Part List
