Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2163572 Shelf, Cantilever (3) Appelez-nous -
2 W10864399 Glass, Cover   (Replaces: 2174150) Special Order $ 220.98

3 W10508993 Cover, Crisper   (Replaces: 2209698) Special Order $ 291.29

4 W10136387A Egg Bin   (Replaces: 2216624) Special Order $ 18.61

5 W10864399 Glass, Cover   (Replaces: 2179259) Special Order $ 220.98

6 2179350 Deflector Special Order $ 81.80

7 W11223328 Stud Assembly   (Replaces: 2196485) In-Stock Immediately $ 14.07

8 2217039 Cover, Meat Pan Appelez-nous -
9 1125594 Retainer, Glass Appelez-nous -
10 WP2188661 Crisper Pan   (Replaces: 2188661) In-Stock Immediately $ 162.07

11 WP2188664 Meat Pan   (Replaces: 2188654) In-Stock Immediately $ 85.30

12 WP3-24004-109 Screw   (Replaces: 3400894) Special Order $ 8.05

13 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 10.35

14 2177986 Glass (3) Special Order $ 90.50

15 WP3400806 Screw   (Replaces: 8281158) Special Order $ 7.71


    View Diagram in Separate Window     Print Icon   Print Part List

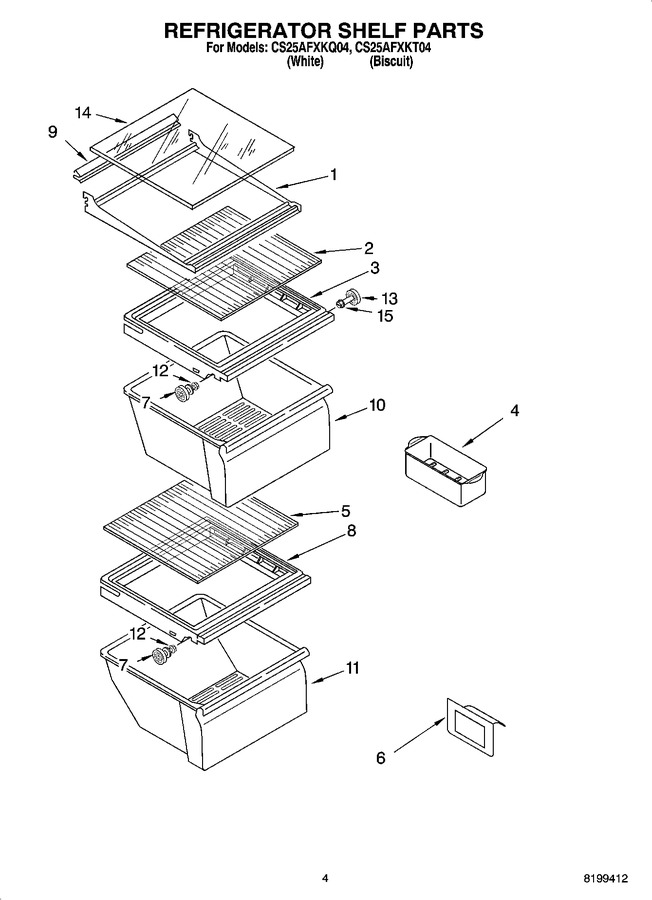

Diagram for CS25AFXKT04
