Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP308685 Screw (2)   (Replaces: 98518) In-Stock Immediately $ 7.87

2 WPW10139210 Screw, 8-18 X 5/16   (Replaces: 3390646) Special Order $ 7.50

3 WP681414 Screw, 10-16 X 1/2   (Replaces: 3390663) In-Stock Immediately $ 7.85

4 3391846 Clip, Front Panel (2) Special Order $ 21.15

5 WP3391902 Switch, Broken Belt   (Replaces: 3388907) In-Stock Immediately $ 59.84

6 WP691581 Actuator, Switch   (Replaces: 691581) In-Stock Immediately $ 8.09

7 3389373 Cabinet, Lower (golden Harvest) Appelez-nous -
7 3389369 Cabinet, Lower (white) Appelez-nous -
7 3389370 Cabinet, Lower (almond) Appelez-nous -
7 3389371 Cabinet, Lower (toast) Appelez-nous -
7 3389372 Cabinet, Lower (platinum) Appelez-nous -
8 49621 Foot, Dryer (plastic) (4)   (Replaces: 688222) In-Stock Immediately $ 8.55

9 WP660658 Clamp, Motor (2)   (Replaces: 660658) Special Order $ 7.83

10 WPW10446781 Spring, Idler   (Replaces: 3387374) In-Stock Immediately $ 24.57

11 WP3389420 Retainer, Idler   (Replaces: 3389420) Special Order $ 8.02

12 WPW10404617 Plug, Multivent (toast)   (Replaces: 697752) Special Order $ 71.98

12 WPW10404617 Plug, Multivent (platinum)   (Replaces: 697753) Special Order $ 71.98

12 W10470674 Plug, Multivent (white)   (Replaces: 697750) In-Stock Immediately $ 76.65

12 WPW10404617 Plug, Multivent (almond)   (Replaces: 697751) Special Order $ 71.98

12 697764 Plug, Multivent (golden Harvest) Appelez-nous -
13 279640 Pulley Assembly   (Replaces: 3388672) In-Stock Immediately $ 32.51

14 681615 Screw, 10-12 X 1   (Replaces: 3391915) Special Order $ 13.88

15 WPW10354249 Plate, Cover   (Replaces: 3389808) Special Order $ 8.96

16 3387377 Wire, Belt Switch Appelez-nous -
17 693152 Bumper Special Order $ 10.96

18 WP233520 Washer, Thrust   (Replaces: 233520) In-Stock Immediately $ 7.96

19 WP297092 Clip (2)   (Replaces: 297092) In-Stock Immediately $ 8.24

20 WPW10512946 Tri-ring   (Replaces: 690997) In-Stock Immediately $ 8.80

21 W11175815 Hinge And Pin (2)   (Replaces: 3389247) Special Order $ 81.41

22 3391611 Grill Appelez-nous -
24 WP3393657 Restrainer, Belt   (Replaces: 3390173) In-Stock Immediately $ 132.46

25 3390514 Clip Appelez-nous -
26 3389249 Nut, ``u`` (4) Appelez-nous -
27 279787 Motor Assembly 60 Hz. (nos. 24 & 29 Not Included With Motor)   (Replaces: 3388238) In-Stock Immediately $ 235.65

28 279827 Switch, Motor   (Replaces: 3388235) In-Stock Immediately $ 191.95

29 W10837625 Pulley 60 Hz   (Replaces: 3389729) In-Stock Immediately $ 12.16

30 W11667280 Belt, Drive   (Replaces: 3389728) Special Order $ 33.50

31 WP3390902 Clip, Door Hinge (2)   (Replaces: 3390902) Special Order $ 11.11

32 WP3387118 Bracket, Motor   (Replaces: 3387118) Special Order $ 133.59

33 W11089212 Washer (2)   (Replaces: 3392186) Special Order $ 9.67

38 717253 Plug, 2-way (uses Terminal 94613) Appelez-nous -
38 3389967 Harness, Door Switch Appelez-nous -
39 W10837240 Bracket, Idler   (Replaces: 3388674) In-Stock Immediately $ 35.78

40 3388600 Clip, Lint Duct Appelez-nous -
41 W10820036 Switch, Door   (Replaces: 347207) In-Stock Immediately $ 30.50

42 3389484 Screw, 6-20 X 7/8 Appelez-nous -
44 WP3387242 Seal, Front Panel   (Replaces: 3387242) In-Stock Immediately $ 31.42

45 WP488627 Screw, 10-32 X 1/2   (Replaces: 342055) Special Order $ 7.57

46 WP3388229 Retainer   (Replaces: 3388229) In-Stock Immediately $ 8.45

47 3391609 Door, Rear Appelez-nous -
48 WP694091 Screw   (Replaces: 694091) Special Order $ 7.19

49 3387876 Door, Front (golden Wheat) Appelez-nous -
49 3387873 Door, Front (almond) Appelez-nous -
49 W11663440 Door, Front (white)   (Replaces: 3387872) Special Order $ 259.37

49 3387875 Door, Front (platinum) Appelez-nous -
49 3387874 Door, Front (toast) Appelez-nous -
51 3391861 Upper Front Panel (almond) Appelez-nous -
51 3391864 Upper Front Panel (golden Wheat) Appelez-nous -
51 3391862 Upper Front Panel (toast) Appelez-nous -
51 3391863 Upper Front Panel (platinum) Appelez-nous -
51 3391860 Upper Front Panel (white) Appelez-nous -
52 279570 Strike, Door   (Replaces: 696144) In-Stock Immediately $ 8.89

53 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 7.76

55 WP488729 Screw, No. 8 X 1/2   (Replaces: 3390647) In-Stock Immediately $ 7.79

56 717252 Receptacle (uses Terminals 94614 Or 94613) Appelez-nous -
56 3389963 Harness (lower) Appelez-nous -
56 692997 Plug, Mult- Terminal (uses Terminals 3388387 (2), 693163 (2), 693165 (3) And 94613 (2) Appelez-nous -
57 W10823582 Seal, Door   (Replaces: 3387564) Special Order $ 111.92

58 279570 Catch, Door Assembly   (Replaces: 690081) In-Stock Immediately $ 8.89

59 3387376 Wire, Ground (motor) Appelez-nous -
60 3389524 Handle, Door (toast) Appelez-nous -
60 3389522 Handle, Door (white) Special Order $ 77.90

60 3389523 Handle, Door (almond) Appelez-nous -
60 3389526 Handle, Door (golden Wheat) Appelez-nous -
60 3389525 Handle, Door (platinum) Appelez-nous -
61 WP3406797 Panel, Toe (white)   (Replaces: 697215) Special Order $ 238.33

61 697217 Panel, Toe (toast) Appelez-nous -
61 697219 Panel, Toe (golden Wheat) Appelez-nous -
61 697216 Panel, Toe (almond) Appelez-nous -
61 697218 Panel, Toe (platinum) Appelez-nous -
62 3389969 Tie, Cable Appelez-nous -
63 697777 Screw, 11-16 X 7/8 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

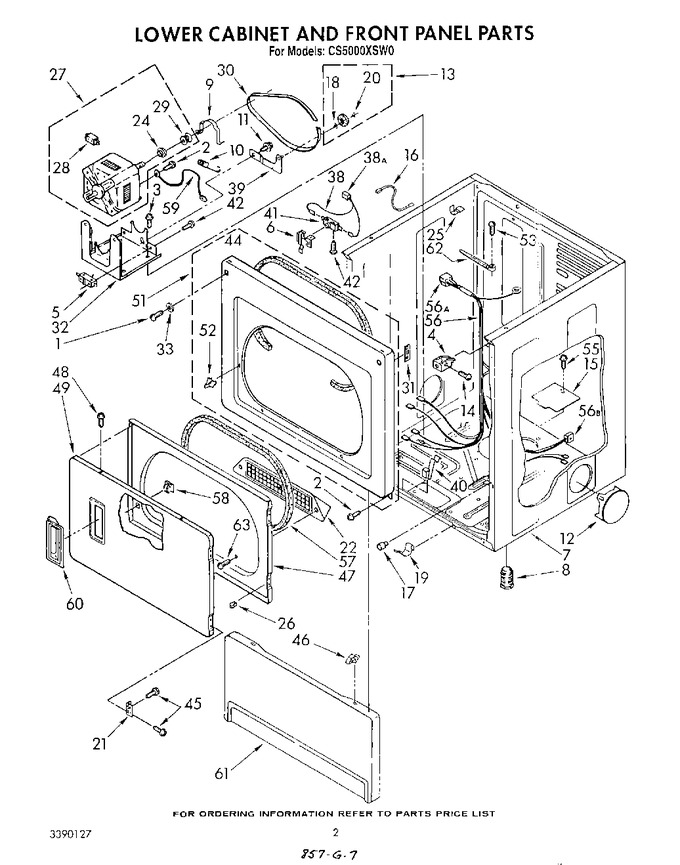

Diagram for CS5000XSW0
