SELECT A DIAGRAM

01 - Compressor Parts


02 - Cool Parts


03 - Exterior Parts

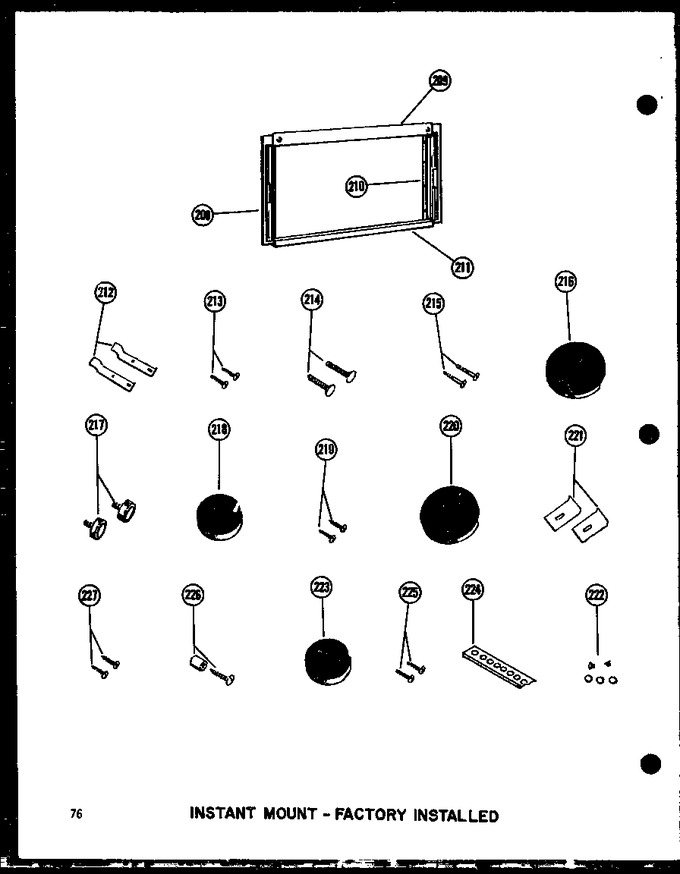

04 - Instant Mount-factory Installed


05 - Interior Parts


06 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
208	M1250031		Screw		Appelez-nous	-
208	B1124802		Strip-backer		Appelez-nous	-
208	D5481202		Curtain, Sliding Frame, 1 Each		Appelez-nous	-
208	D5481103		Sliding Frame		Appelez-nous	-
208	C5905804		Assembly, Sliding Frame		Appelez-nous	-
209	C5903405		Top Rail-painted		Appelez-nous	-
210	M2150031		Screw, Curtain To Sliding Fram		Appelez-nous	-
210	D5481202		Curtain, Sliding Frame, 1 Each		Appelez-nous	-
210	D5481104		Sliding Frame		Appelez-nous	-
210	C5905803		Assembly, Sliding Frame		Appelez-nous	-
210	B1124802		Strip-backer		Appelez-nous	-
211	B1124705		Bottom Rail-painted		Appelez-nous	-
212	C5906201		Safety Support		Appelez-nous	-
213	M0246017		Screw		Appelez-nous	-
214	M0200001		Screw		Appelez-nous	-
215	M0211020		Screw		Appelez-nous	-
216	A3030302		Gasket		Appelez-nous	-
218	A3030301		Gasket (inch)		Appelez-nous	-
219	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
220	A3030310		Gasket (per Foot)		Appelez-nous	-
222	M0310009		Plug		Appelez-nous	-
223	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
224	B1124802		Strip-backer		Appelez-nous	-
225	M0211516		Screw A K		Appelez-nous	-
226	M0212062		Screw		Appelez-nous	-
227	A4065501		Spacer K		Appelez-nous	-
228	M0213032		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
