SELECT A DIAGRAM

02 - Lower Cabinet And Front Panel


03 - Control Panel And Separator

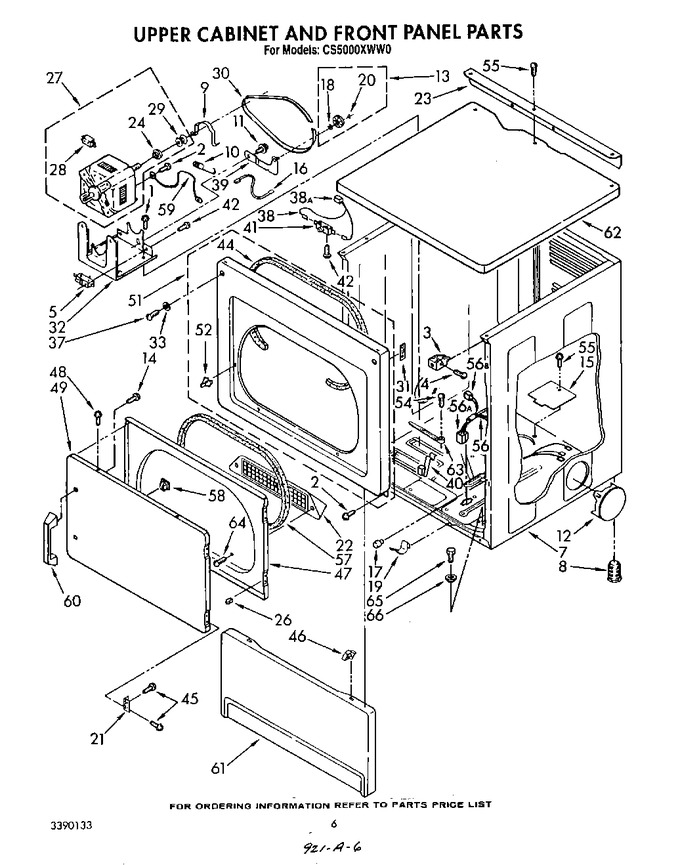

04 - Upper Cabinet And Front Panel


05 - Upper And Lower Bulkhead , Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 10-16 X 1/2   (Replaces: 3393439)			Immediately	$ 8.40
2	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
3	3391846		Clip, Front Panel (2)				$ 22.21
4	681615		Screw, 10-12 X 1   (Replaces: 3391915)				$ 14.57
5	WP3391902		Switch, Broken Belt   (Replaces: 3391903)			Immediately	$ 59.84
7	3389385		Cabinet (upper) (white)		Appelez-nous	-
7	3389386		Cabinet (upper) (almond)		Appelez-nous	-
8	WP689172		Foot, Dryer (plastic) (2)   (Replaces: 689172)				$ 85.51
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	W10470674		Plug, Multivent (white)   (Replaces: 697750)			Immediately	$ 76.65
12	WPW10404617		Plug, Multivent (almond)   (Replaces: 697751)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	718032		Screw, 8-18 X 3/4 (door Handle)		Appelez-nous	-
15	WPW10354249		Plate, Cover   (Replaces: 3389808)				$ 9.41
16	3387377		Wire, Belt Switch		Appelez-nous	-
17	693152		Bumper				$ 11.51
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 8.36
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.95
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 85.48
22	3391611		Grill		Appelez-nous	-
23	3399286		Bracket, Angle		Appelez-nous	-
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	279787		Motor Assembly (60 Hz.) (nos. 24 & 29 Not Included With Motor)   (Replaces: 3391890)			Immediately	$ 235.65
28	279827		Switch, Motor   (Replaces: 3388235)			Immediately	$ 191.95
29	W10837625		Pulley 60 Hz   (Replaces: 3389729)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.67
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W11089212		Washer (2)   (Replaces: 3392186)				$ 11.06
37	WP308685		Screw (2)   (Replaces: 98518)			Immediately	$ 7.87
38	3389967		Harness, Door Switch		Appelez-nous	-
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	3388600		Clip, Lint Duct		Appelez-nous	-
41	WP3391902		Switch, Door   (Replaces: 3391901)			Immediately	$ 59.84
42	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 10-32 X 1/2   (Replaces: 342055)				$ 8.11
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	3392895		Door, Rear		Appelez-nous	-
48	WP694091		Screw   (Replaces: 694091)				$ 7.55
49	3392898		Door, Front (almond)		Appelez-nous	-
49	3392897		Door, Front (white)		Appelez-nous	-
51	279723		Upper Front Panel (almond)   (Replaces: 3393082)		Appelez-nous	-
51	3393081		Upper Front Panel (white)		Appelez-nous	-
52	279570		Stike, Door   (Replaces: 696144)			Immediately	$ 8.89
54	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
56	3389962		Harness (upper)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3392239)				$ 137.13
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	3387376		Wire, Ground (motor)		Appelez-nous	-
60	3392907		Handle, Door (almond)		Appelez-nous	-
60	WP3392906		Handle, Door (white)   (Replaces: 3392906)				$ 87.11
61	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
61	697216		Panel, Toe (almond)		Appelez-nous	-
62	3389351		Top (upper) (white)		Appelez-nous	-
62	3389352		Top (upper) (almond)		Appelez-nous	-
63	3389969		Tie, Cable		Appelez-nous	-
64	697777		Screw, 11-16 X 7/8		Appelez-nous	-
65	122007		Bolt, 5-16 X 18 (2)		Appelez-nous	-
66	3389233		Bushing		Appelez-nous	-
38A	717253		Plug, 2-way (uses Terminals 94613)		Appelez-nous	-
56A	692997		Plug, Multi- Terminal (uses Terminals (2) 693168, (2) 693163, (3) 693165 & (2) 94613)		Appelez-nous	-
56B	717252		Receptacle (use Terminals 94614 And 94613)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
