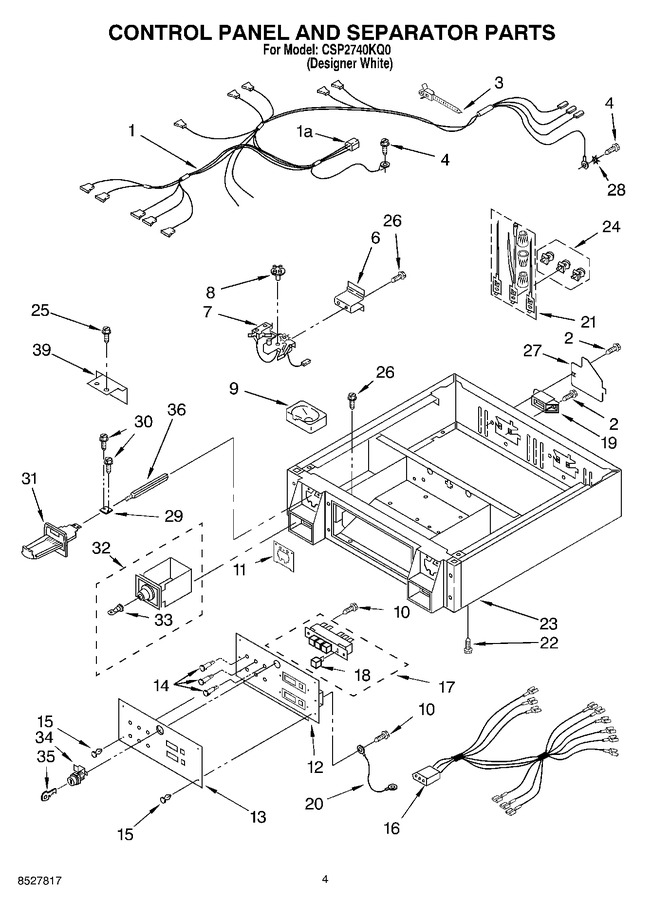

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576522		Harness, Wire (2) 1a   (Replaces: 8283294)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 14.06
3	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 7.76
6	3390115		Bracket, Timer (2)		Appelez-nous	-
7	279737		Timer (includes 4-pin Cam) (2)   (Replaces: 3389668)			Immediately	$ 312.10
8	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.37
8	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.32
8	WP339854		Timing Cam (9 Pin (20 Min.))   (Replaces: 339854)				$ 6.48
8	WP339853		Cam (12-pin (15 Min))   (Replaces: 339853)				$ 7.72
8	51-161-6		Cam (6-pin (30 Min.) Also Available)   (Replaces: 343777)				$ 34.52
9	WP385421		Funnel, Coin (2)   (Replaces: 385421)			Immediately	$ 74.20
10	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 10.88
11	279950		Plate, Chute Adapter (includes Illus. 9)   (Replaces: 3954761)			Immediately	$ 28.89
12	3979100		Panel, Control		Appelez-nous	-
13	8527831		Insert, Decorative		Appelez-nous	-
14	3979326		Lamp, Indicator (amber)		Appelez-nous	-
14	3979325		Lamp, Indicator (red)		Appelez-nous	-
14	3979327		Lamp, Indicator (blue)		Appelez-nous	-
15	354239		Rivet (4)		Appelez-nous	-
16	8283296		Wire Jumper (2) (light & Switch)		Appelez-nous	-
17	WPW10330137		Switch, Pushbutton (2)   (Replaces: 8316437)			Immediately	$ 339.56
18	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 339.56
19	WP3397659		Block, Terminal (2)   (Replaces: 3397659)				$ 23.02
20	3401699		Strut (2)		Appelez-nous	-
21	279318		Terminal, Brass Tinned (3) (includes Illus. 24)			Immediately	$ 100.99
22	3400500		Bolt, 5-16 X 18 (2)			Immediately	$ 13.37
23	3978853		Collar		Appelez-nous	-
24	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 47.37
25	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.92
26	WP3400094		Screw, 10-32 X 3/8   (Replaces: 3400094)				$ 7.93
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 599.76
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	3390424		Extension   (Replaces: 8316523)			Immediately	$ 68.25
30	3400086		Screw, 10-32 X 3/8				$ 12.77
31	8316265		.25		Appelez-nous	-
31	W11126319		Slide Mechanism (vertical 8-coin) (dollar Vend)   (Replaces: 8316520)			Immediately	$ 310.89
31	W11312584		Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 31.40
32	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 178.05
34	W11315637		Security Lock/key And Cam Assembly   (Replaces: 8316526)			Immediately	$ 40.47
35	67001048		Cover- Fz		Appelez-nous	-
36	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 74.59
39	3390424		Extension, Slide			Immediately	$ 68.25
1A	692998		Receptacle (2)		Appelez-nous	-
NI	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
