Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8283295 Harness, Wire (2) Appelez-nous -
2 W11676450 Screw, 10-24 X 3/8   (Replaces: 3400000) Special Order $ 14.76

3 WP3391018 Tie, Cable   (Replaces: 3391018) Special Order $ 33.43

4 W10850756 Screw, 10-32 X 5/8   (Replaces: 697776) Special Order $ 8.20

5 W11808444 Screw, 8-32 X 5/16   (Replaces: 98139) Appelez-nous -
6 3390115 Bracket, Timer (2) Appelez-nous -
7 279737 Timer (includes 4-pin Cam) (2)   (Replaces: 3389668) In-Stock Immediately $ 312.10

8 WP3387974 Cam (3 Pin (60 Min.))   (Replaces: 3387974) Special Order $ 8.74

8 51-161-6 Cam (6 Pin (30 Min.))   (Replaces: 343777) Special Order $ 34.52

9 WP385421 Funnel, Coin (2)   (Replaces: 385421) In-Stock Immediately $ 77.91

10 WP489128 Screw, 8-32 X 3/8   (Replaces: 303921) Special Order $ 11.40

12 3979100 Panel, Control Appelez-nous -
13 8527831 Insert, Decorative Appelez-nous -
14 3979327 Lamp, Indicator (blue) Appelez-nous -
14 3979326 Lamp, Indicator (amber) Appelez-nous -
14 3979325 Lamp, Indicator (red) Appelez-nous -
15 354239 Rivet (4) Appelez-nous -
16 8283296 Wire Jumper (light & Switch) Appelez-nous -
17 WPW10330137 Switch, Pushbutton (2)   (Replaces: 8316437) In-Stock Immediately $ 339.56

18 WP489128 Screw, 8-32 X 3/8   (Replaces: 8281149) Special Order $ 11.40

19 3390189 Strain Relief Appelez-nous -
20 3401699 Strut (2) Appelez-nous -
22 3400500 Bolt, 5-16 X 18 (2) In-Stock Immediately $ 14.04

23 3978853 Collar Appelez-nous -
25 WP356418 Screw, 10-32 X 5/16   (Replaces: 96435) Special Order $ 9.26

26 98437 Screw, 10-32 X 3/8 Appelez-nous -
27 W11539855 Cover, Terminal Block (2)   (Replaces: 3396795) In-Stock Immediately $ 629.75

28 3390443 Retainer, Terminal (2) Appelez-nous -
29 W11628810 Power Cord   (Replaces: 3401401) Special Order $ 101.90

30 3390424 Extension, Slide In-Stock Immediately $ 71.66

33 2170653 Cover Appelez-nous -
36 3393262 Bolt, Slide Mechanism Appelez-nous -
1A 3936144 Connector (3-circuit) Special Order $ 21.22


    View Diagram in Separate Window     Print Icon   Print Part List

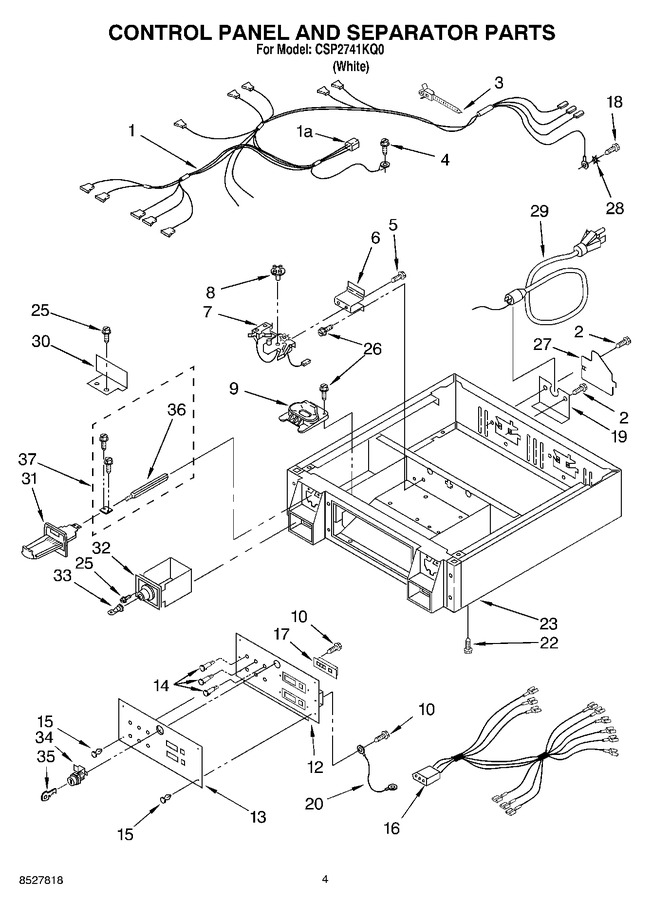

Diagram for CSP2741KQ0
