Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT8528099 Literature Parts (wiring Diagram (upper)) Appelez-nous -
1 LIT8527813 Literature Parts (installation Instructions) Appelez-nous -
1 LIT8528098 Literature Parts (wiring Diagram (lower)) Appelez-nous -
1 LIT8562521 Repair Parts List Appelez-nous -
2 681615 Screw, 10-16 X 1   (Replaces: 3391915) Special Order $ 14.57

3 WP681414 Screw, 10-16 X 1/2   (Replaces: 3390663) In-Stock Immediately $ 8.47

4 3391846 Clip, Front Panel (2) Special Order $ 22.21

5 279782 Switch, Broken Belt   (Replaces: 3394881) In-Stock Immediately $ 54.44

6 WP3395530 Screw, 6-20 X 7/8   (Replaces: 697773) Special Order $ 8.57

7 W11417441 Cabinet, Lower   (Replaces: 8310656) Special Order $ 440.17

8 49621 Foot, Dryer (plastic) (4)   (Replaces: 3392100) In-Stock Immediately $ 8.55

9 WP660658 Clamp, Motor (2)   (Replaces: 660658) Special Order $ 8.22

10 WPW10446781 Spring, Idler   (Replaces: 3387374) In-Stock Immediately $ 25.80

11 WP3389420 Retainer, Idler   (Replaces: 3389420) Special Order $ 8.62

12 WP693995 Screw 8-18 X 3/8   (Replaces: 693995) In-Stock Immediately $ 7.55

13 279640 Pulley Assembly   (Replaces: 3388672) In-Stock Immediately $ 32.51

14 WP3373329 Screw, 10-16 X 1/2   (Replaces: 3393258) Special Order $ 8.52

15 W10181903 Bracket, Burner   (Replaces: 8529757) Appelez-nous -
16 3394081 Wire, Belt Switch Special Order $ 37.57

17 693152 Bumper Special Order $ 11.51

18 WP233520 Washer, Thurst   (Replaces: 233520) In-Stock Immediately $ 8.36

19 WP297092 Clip (2)   (Replaces: 297092) In-Stock Immediately $ 8.95

20 WPW10512946 Tri-ring   (Replaces: 690997) In-Stock Immediately $ 8.80

21 W11175815 Hinge And Pin (2)   (Replaces: 3389247) Special Order $ 85.48

24 WP3393657 Restrainer, Belt   (Replaces: 3393657) In-Stock Immediately $ 139.08

25 3398948 Wire, Jumper Special Order $ 64.66

26 3389249 Nut, ``u`` (4) Appelez-nous -
27 W10841144 Motor Assembly 60 Hz.   (Replaces: 8538264) In-Stock Immediately $ 234.31

28 3394081 Wire, Jumper Special Order $ 37.57

29 WP8066184 Pulley 60 Hz   (Replaces: 3389627) In-Stock Immediately $ 51.02

30 661570V Belt, Drive   (Replaces: 3387610) In-Stock Immediately $ 32.81

31 WP3390902 Clip, Door Hinge (2)   (Replaces: 3390902) Special Order $ 11.67

32 WP3387118 Bracket, Motor   (Replaces: 3387118) Special Order $ 140.27

33 W11089212 Washer   (Replaces: 3392186) Special Order $ 11.06

38 8283298 Jumper, Door Switch Special Order $ 87.92

39 W10837240 Bracket, Idler   (Replaces: 3388674) In-Stock Immediately $ 35.78

41 WPW10237959 Door Switch Assembly   (Replaces: 3406109) In-Stock Immediately $ 55.64

42 WP98129 Screw, 6/20 X 1 1/16   (Replaces: 98129) Special Order $ 8.18

44 WP3387242 Seal, Front Panel   (Replaces: 3387242) In-Stock Immediately $ 31.42

45 WP488627 Screw, 8-18 X 1/2   (Replaces: 342055) Special Order $ 8.11

46 WP3388229 Retainer   (Replaces: 3388229) In-Stock Immediately $ 8.45

47 280083 Door, Rear   (Replaces: 3392563) Special Order $ 301.37

48 WP694091 Screw, 8-18 X 3/8   (Replaces: 694091) Special Order $ 7.55

49 W11663440 Door, Front   (Replaces: 3387872) Special Order $ 272.34

51 3393081 Upper Front Panel Appelez-nous -
52 279570 Strike, Door   (Replaces: 696144) In-Stock Immediately $ 8.89

55 WP488729 Screw, 8-18 X 1/2   (Replaces: 3390647) In-Stock Immediately $ 8.28

56 8529990 Harness (lower) Appelez-nous -
57 WP3390735 Seal, Door   (Replaces: 3390735) Special Order $ 137.13

58 279570 Catch, Door Assembly   (Replaces: 3392538) In-Stock Immediately $ 8.89

59 WP8066120 Lever, Snap Switch   (Replaces: 8066120) In-Stock Immediately $ 34.77

60 3389522 Handle, Door Special Order $ 81.80

61 WP3406797 Panel, Toe   (Replaces: 697215) Special Order $ 250.25

64 3401797 Burner Assembly 60 Hz. (refer To Pages 10 & 11 For Breakdown) Appelez-nous -
65 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

66 279923 Valve, Gas 60 Hz. (complete)   (Replaces: 3401775) In-Stock Immediately $ 286.03

67 3387561 Clamp, Pipe Appelez-nous -
68 WPW10366705 Screw, 8-32 X 7/8``   (Replaces: 3393909) Special Order $ 7.88

69 279311 Ignitor   (Replaces: 686590) In-Stock Immediately $ 78.90

70 WP693995 Screw, 8-18 X 3/8   (Replaces: 3387057) In-Stock Immediately $ 7.55

38A 717253 Plug, 2-way Appelez-nous -
38B 3936144 Connector Special Order $ 21.22

56A 3390423 Plug, Mult- Terminal Appelez-nous -
56B 717252 Receptacle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

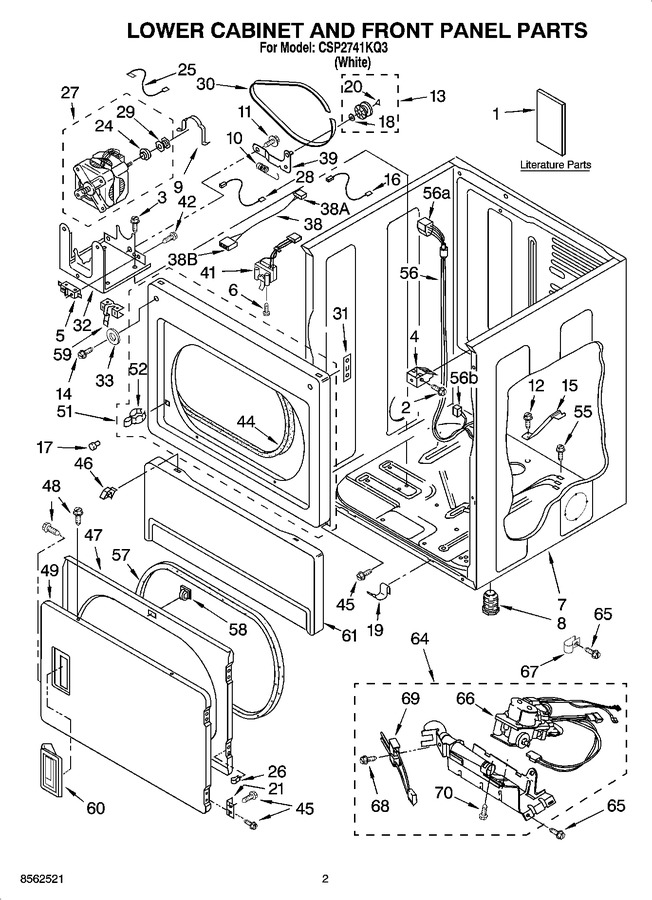

Diagram for CSP2741KQ3
