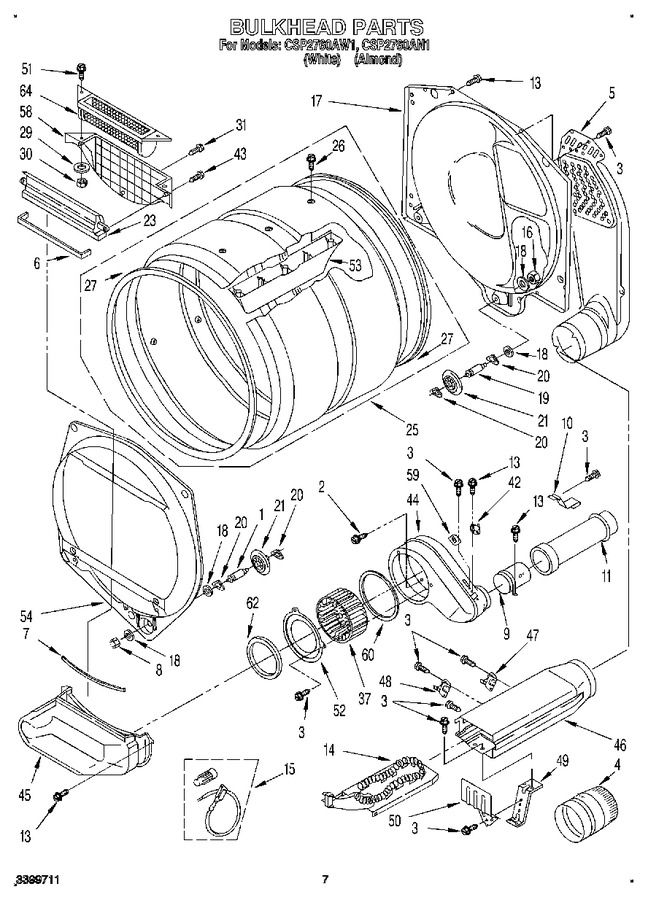

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 3387460)			Immediately	$ 62.21
2	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.79
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
4	3391910		Damper, Exhaust		Appelez-nous	-
5	WP3387911		Air Duct Assembly   (Replaces: 697354)				$ 311.72
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.97
8	WP3359452		Nut, 3/8 X 16 (r.h.)   (Replaces: 3359452)			Immediately	$ 7.19
9	WP8563747		Exhaust Pipe Assembly   (Replaces: 3395532)				$ 91.38
10	WP3395536		Clip, Multivent   (Replaces: 3395536)				$ 81.21
11	3395997		Extension, Exhaust Pipe		Appelez-nous	-
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
14	W10864898		Element, Heater   (Replaces: 3387748)				$ 319.62
15	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
16	3387709		Nut, 3/8-16 (l.h.)				$ 5.60
17	W11299300		Bulkhead, Rear   (Replaces: 3387809)				$ 350.11
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 3387707)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Support, Roller   (Replaces: 3396801)			Immediately	$ 28.50
23	697768		Housing, Outlet		Appelez-nous	-
25	W10545924		Drum Complete   (Replaces: 3393317)				$ 435.06
26	697777		Screw, 11-16 X 7/8		Appelez-nous	-
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 70.82
29	3391948		Washer, No. 10		Appelez-nous	-
30	120614		Nut, Hex		Appelez-nous	-
31	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.79
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
42	WP3387138		Thermostat, Internal-bias   (Replaces: 3387138)			Immediately	$ 147.22
43	WP3387230		Screw, 10-16 X 3/4   (Replaces: 3387230)			Immediately	$ 8.54
44	WP8544363		Housing, Blower   (Replaces: 697363)				$ 152.63
45	3390531		Lint Duct Assembly		Appelez-nous	-
46	W10802681		Box, Heater   (Replaces: 3392537)			Immediately	$ 129.67
47	279973		Cut-off, Thermal   (Replaces: 3391913)			Immediately	$ 75.60
48	WP3391914		Thermostat 295~ (146~c)   (Replaces: 3391914)			Immediately	$ 119.47
49	697700		Bracket, Heater		Appelez-nous	-
50	697699		Shield, Heat		Appelez-nous	-
51	WP179051		Screw   (Replaces: 179051)			Immediately	$ 7.96
52	279780		Cover, Blower (includes Illus. Nos. 60 & 62)   (Replaces: 697366)				$ 92.95
53	3393316		Baffle, Drum (3)		Appelez-nous	-
54	WP697557		Bulkhead, Front   (Replaces: 3389421)				$ 208.03
58	3389516		Cover, Lint Screen		Appelez-nous	-
59	WP3390719		Fuse, Thermal   (Replaces: 3390719)			Immediately	$ 31.57
60	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.88
62	WP8566209		Seal, Lint Duct   (Replaces: 697769)				$ 55.45
64	3389510		Screen, Lint		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT3401133		Label, Wiring Diagram		Appelez-nous	-
	LIT3402323		Instructions, Installation		Appelez-nous	-
